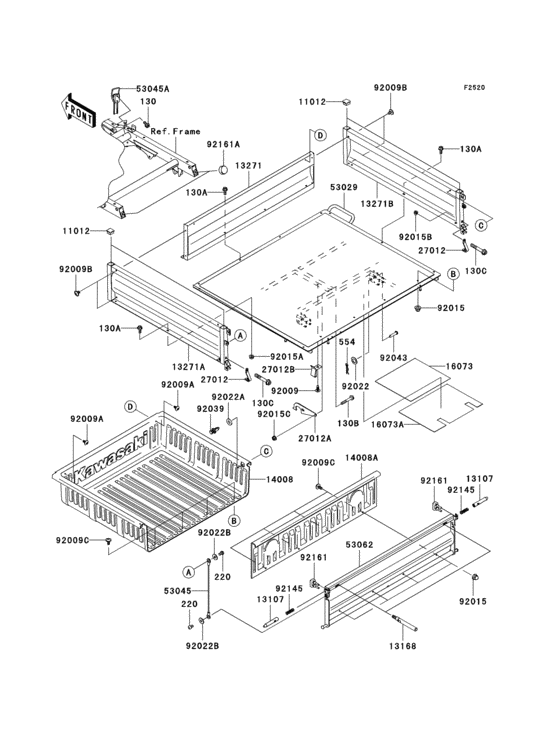

Carrier(s) Diagram Kawasaki KAF400 Mule 610 4X4 Hardwoods Green HD
- Model code
- KAF400-C1
- Engine Capacity
- 400
- Year
- 2005
- Sales region
- USA
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Power
- 13,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Mule 610 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
130A
|
130A
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
130B
|
130B
130J0640
BOLT-FLANGED
|
130J0640 |
— | ||
| replacement | |||||
|
130B
|
130B
130CB0640 BOLT-FLANGED |
130CB0640 |
from US $1.40 |
||
|
130C
|
130C
130J0850 BOLT-FLANGED,8X50 |
130J0850 |
from US $1.90 |
||
| replacement | |||||
|
130C
|
130C
130BB0850 BOLT-FLANGED,8X50 |
130BB0850 |
from US $1.40 |
||
|
220
|
220
220F0610 SCREW-PAN-CROSS |
220F0610 |
from US $1.19 |
||
| replacement | |||||
|
220
|
220
220AB0610 SCREW-PAN-CROSS |
220AB0610 |
from US $0.94 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/M |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/M |
554DA1200 |
from US $2.17 |
||
|
11012
|
11012
11012-1784 CAP |
11012-1784 |
from US $7.62 |
||
|
13107
|
13107
13107-0082 SHAFT |
13107-0082 |
from US $37.17 |
||
|
13168
|
13168
13168-0090 LEVER |
13168-0090 |
from US $7.93 |
||
|
13271
|
13271
13271-0385-10 PLATE,CARRIER,SIDE,FR |
13271-0385-10 |
US $242.61 |
||
|
13271A
|
13271A
13271-0527-374 PLATE,CARRIER,SIDE,LH |
13271-0527-374 |
US $362.79 |
||
| replacement | |||||
|
13271A
|
13271A
13271-0527-826 PLATE,CARRIER,SIDE,LH |
13271-0527-826 |
US $362.79 |
||
|
13271B
|
13271B
13271-0528-374 PLATE,CARRIER,SIDE,RH |
13271-0528-374 |
US $362.79 |
||
| replacement | |||||
|
13271B
|
13271B
13271-0528-826 PLATE,CARRIER,SIDE,RH |
13271-0528-826 |
US $362.79 |
||
|
14008
|
14008
14008-0009 LINER,CARRIER BED |
14008-0009 |
US $227.27 |
||
| replacement | |||||
|
14008
|
14008
14008-0012 LINER,CARRIER BED |
14008-0012 |
US $227.27 |
||
|
14008A
|
14008A
14008-0010 LINER,TAIL GATE |
14008-0010 |
US $34.88 |
||
|
16073
|
16073
16073-0020 INSULATOR,CARRIER |
16073-0020 |
US $47.29 |
||
| replacement | |||||
|
16073
|
16073
16073-0039 INSULATOR,CARRIER |
16073-0039 |
US $47.29 |
||
|
16073A
|
16073A
16073-0021 INSULATOR,CARRIER |
16073-0021 |
US $52.02 |
||
| replacement | |||||
|
16073A
|
16073A
16073-0040 INSULATOR,CARRIER |
16073-0040 |
US $52.02 |
||
|
27012
|
27012
27012-0022 HOOK,TAIL GATE |
27012-0022 |
US $8.14 |
||
|
27012A
|
27012A
27012-0044 HOOK |
27012-0044 |
US $34.36 |
||
|
27012B
|
27012B
27012-1445 HOOK,CARRIER |
27012-1445 |
from US $8.24 |
||
|
53029
|
53029
53029-0024-10 CARRIER,BLACK |
53029-0024-10 |
US $1,471.21 |
||
|
53045
|
53045
53045-0006 HOOK-ASSY,TAIL GATE |
53045-0006 |
US $26.98 |
||
|
53045A
|
53045A
53045-1063 HOOK-ASSY |
53045-1063 |
from US $16.65 |
||
|
53062
|
53062
53062-0004-374 Superceded |
53062-0004-374 |
US $470.63 |
||
| replacement | |||||
|
53062
|
53062
53062-0009-826 GATE-TAIL,C.H.GREEN |
53062-0009-826 |
US $577.30 |
||
|
92009
|
92009
92009-1166 SCREW,TAPPING |
92009-1166 |
from US $2.88 |
||
|
92009A
|
92009A
92009-1480 SCREW |
92009-1480 |
from US $2.38 |
||
|
92009B
|
92009B
92009-1661 SCREW |
92009-1661 |
from US $2.69 |
||
|
92009C
|
92009C
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92015
|
92015
92015-1262 NUT,LOCK 6MM |
92015-1262 |
from US $3.02 |
||
|
92015A
|
92015A
92015-1386 NUT,FLANGED,6MM |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015A
|
92015A
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92015B
|
92015B
92015-1408 NUT,FLANGED,8MM |
92015-1408 |
from US $4.34 |
||
| replacement | |||||
|
92015B
|
92015B
92210-0004 NUT,FLANGED,8MM |
92210-0004 |
from US $3.80 |
||
|
92015C
|
92015C
92015-1675 NUT |
92015-1675 |
from US $2.69 |
||
|
92022
|
92022
92022-072 WASHER PLAIN 12MM |
92022-072 |
from US $3.20 |
||
|
92022A
|
92022A
92022-1317 WASHER,8.5X20X1.6,BLA |
92022-1317 |
from US $2.69 |
||
|
92022B
|
92022B
92022-1545 WASHER,7X18X1.2 |
92022-1545 |
from US $1.45 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
from US $1.40 |
||
|
92043
|
92043
92043-1451 PIN,12X54 |
92043-1451 |
from US $5.90 |
||
|
92145
|
92145
92145-1215 SPRING,TENSIONER |
92145-1215 |
from US $2.49 |
||
|
92161
|
92161
92161-0258 DAMPER |
92161-0258 |
US $5.44 |
||
|
92161A
|
92161A
92161-1065 DAMPER, SEAT |
92161-1065 |
from US $1.90 |
||
