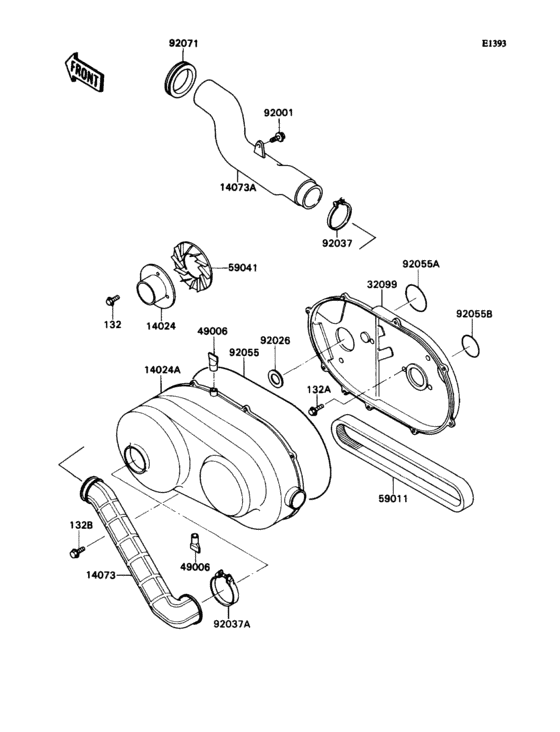

Converter cover Diagram Kawasaki KAF540 Mule 2020
- Model code
- KAF540-D1
- Engine Capacity
- 540
- Year
- 1993
- Sales region
- Canada
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2020
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132G0630
BOLT-FLANGED-SMALL
|
132G0630 |
— | ||
| replacement | |||||
|
132
|
132
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.27 |
||
|
132A
|
132A
132J0620
BOLT,6X20
|
132J0620 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0620 BOLT,6X20 |
132BB0620 |
from US $2.38 |
||
|
132B
|
132B
132J0630
BOLT,6X30
|
132J0630 |
— | ||
| replacement | |||||
|
132B
|
132B
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
14024
|
14024
14024-1554 COVER,FAN |
14024-1554 |
from US $26.90 |
||
|
14024A
|
14024A
14024-1807
COVER,BELT CONVERTER
|
14024-1807 |
— | ||
|
14073
|
14073
14073-1385 DUCT |
14073-1385 |
US $48.13 |
||
|
14073A
|
14073A
14073-1414 DUCT |
14073-1414 |
US $28.73 |
||
|
32099
|
32099
32099-1110 CASE,BELT CONVERTER |
32099-1110 |
US $137.81 |
||
|
49006
|
49006
49006-1199 BOOT |
49006-1199 |
from US $5.76 |
||
|
59011
|
59011
59011-1053 BELT |
59011-1053 |
US $140.81 |
||
| replacement | |||||
|
59011
|
59011
59011-0038 BELT |
59011-0038 |
from US $114.77 |
||
|
59041
|
59041
59041-1053
FAN
|
59041-1053 |
— | ||
| replacement | |||||
|
59041
|
59041
59041-1059
FAN
|
59041-1059 |
— | ||
|
92001
|
92001
92001-1950 BOLT,6X16 |
92001-1950 |
from US $2.69 |
||
|
92026
|
92026
92026-1301 SPACER |
92026-1301 |
US $16.07 |
||
|
92037
|
92037
92037-1409 CLAMP,AIR FILTER |
92037-1409 |
US $11.09 |
||
|
92037A
|
92037A
92037-3711 CLAMP |
92037-3711 |
from US $3.94 |
||
|
92055
|
92055
92055-1394 RING-O |
92055-1394 |
US $9.14 |
||
|
92055A
|
92055A
92055-1395 RING-O,CRANKCASE SIDE |
92055-1395 |
from US $2.79 |
||
|
92055B
|
92055B
92055-1396 RING-O,GEAR CASE SIDE |
92055-1396 |
US $3.08 |
||
|
92071
|
92071
92071-1158
GROMMET
|
92071-1158 |
— | ||
