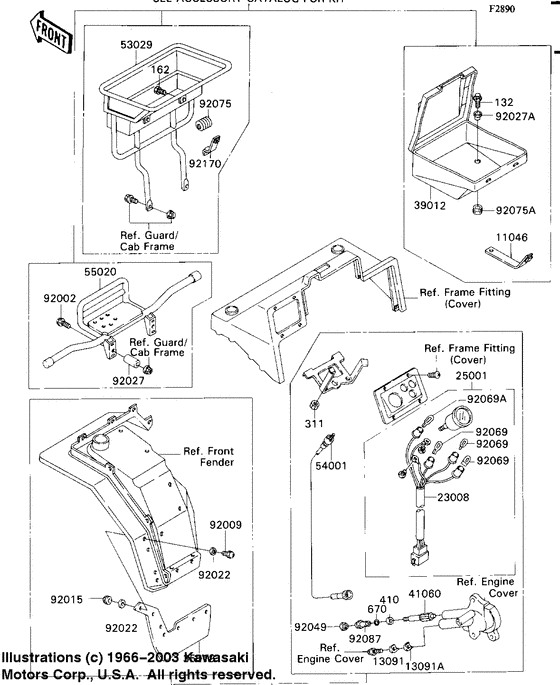

Optional parts (Front) Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11046
|
11046
11046-1816 BRACKET,LUNCH BOXBracket,lunch box; |
11046-1816 |
US $15.73 |
||
|
13091
|
13091
13091-1008 HOLDER,TACHOMETER2.3THolder,tachometer,t=2.3; |
13091-1008 |
from US $2.88 |
||
|
13091A
|
13091A
13091-1009 HOLDER,TACHOMETR,3.2THolder,tachometer,t=3.2; |
13091-1009 |
from US $2.88 |
||
|
23008
|
23008
23008-1355 SOCKET-ASSY,METERSocket-assy,meter; |
23008-1355 |
US $44.66 |
||
|
25001
|
25001
25001-1706 METER-ASSY,MPHMeter-assy,mph; |
25001-1706 |
US $230.62 |
||
|
35019
|
35019
35019-1258
Flap
Flap,fr; |
35019-1258 |
— | ||
|
39012
|
39012
39012-1054
Case-storage
|
39012-1054 |
— | ||
|
41060
|
41060
41060-1120 GEAR-METER SCREW |
41060-1120 |
US $15.73 |
||
|
53029
|
53029
53029-1126
Carrier
Carrier,front rack; |
53029-1126 |
— | ||
|
54001
|
54001
54001-1135 CABLE-SPEEDOMETER |
54001-1135 |
from US $30.01 |
||
| replacement | |||||
|
54001
|
54001
54001-0040 Cable-Speedometer |
54001-0040 |
US $54.06 |
||
|
55020
|
55020
55020-1352 GUARDGuard,electric winch; |
55020-1352 |
US $8.51 |
||
|
92002
|
92002
92002-1661 BOLT,SUSPENSION RODBolt,suspension rod; |
92002-1661 |
from US $6.99 |
||
|
92009
|
92009
92009-1181
SCREW,6X18
Screw,6x18,black; |
92009-1181 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0002 SCREW,6X18Screw,6x18,black; |
92172-0002 |
from US $1.27 |
||
|
92015
|
92015
92015-1386 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLAWasher,6.5x20x1.6,black; |
92022-1346 |
from US $0.82 |
||
|
92027
|
92027
92027-1574 COLLAR,12.2X22X48.2Collar,12.2x22x48.2; |
92027-1574 |
US $22.59 |
||
|
92027A
|
92027A
92027-1780 COLLAR,L=19.3Collar,l=19.3; |
92027-1780 |
from US $4.80 |
||
|
92049
|
92049
92050-075 OIL SEAL |
92050-075 |
from US $7.13 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4WBulb,12v 3.4w; |
92069-1007 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1059 BULB,12V 1.7WBulb,12v 1.7w; |
92069-1059 |
from US $3.33 |
||
|
92075
|
92075
92075-084 DAMPER RUBBERDamper,fuel tank; |
92075-084 |
from US $5.28 |
||
|
92075A
|
92075A
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
|
92087
|
92087
92087-010 GUIDE,TACHOMETER GEARBushing-meter gear,tachometer; |
92087-010 |
from US $13.68 |
||
|
92170
|
92170
92170-1115
Clamp
Clamp,front rack; |
92170-1115 |
— | ||
|
132
|
132
132G0830 BOLT-FLANGED-SMALL |
132G0830 |
from US $1.74 |
||
| replacement | |||||
|
132
|
132
132BA0830 BOLT-FLANGED-SMALL |
132BA0830 |
from US $1.61 |
||
|
162
|
162
162C1022 BOLT-FINE-WSP,10X22Bolt-fine-wsp,10x22; |
162C1022 |
US $3.15 |
||
|
311
|
311
311B0500
NUT-HEX,5MM
|
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer-plain-small,6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher-plain-small,6mm; |
410AA0600 |
from US $0.79 |
||
|
670
|
670
670D1510 0 RING,10MMO ring,10mm; |
670D1510 |
from US $2.85 |
||
