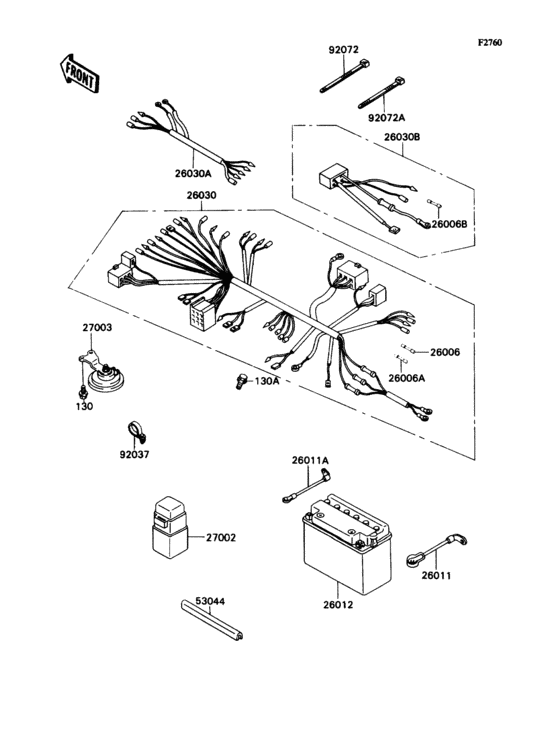

Electrical equipment Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
|
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10 |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130B0612 BOLT,FLANGE,6X12 |
130B0612 |
US $7.90 |
||
| replacements | |||||
|
130A
|
130A
130AA0612 BOLT,FLANGE,6X12 |
130AA0612 |
from US $1.05 |
||
|
130A
|
130A
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
26006
|
26006
26006-1063 FUSE,5A,L=30 |
26006-1063 |
US $5.63 |
||
| replacement | |||||
|
26006
|
26006
26006-1083 FUSE,5A,L=30 |
26006-1083 |
from US $4.35 |
||
|
26006A
|
26006A
26006-1064 FUSE,GLASS TUBE,6.4X3 |
26006-1064 |
from US $4.35 |
||
|
26006B
|
26006B
26006-1065 FUSE,GLASS TUBE,6.4X3 |
26006-1065 |
US $4 |
||
| replacement | |||||
|
26006B
|
26006B
26006-1059 FUSE,GLASS TUBE,6.4X3 |
26006-1059 |
from US $3.64 |
||
|
26011
|
26011
26011-1443 WIRE-LEAD,BATTERY(+) |
26011-1443 |
US $13.41 |
||
|
26011A
|
26011A
26011-1444 WIRE-LEAD,BATTERY(-) |
26011-1444 |
from US $14 |
||
|
26012
|
26012
26012-1242
Battery,yb16cl-b,12v
|
26012-1242 |
— | ||
| replacement | |||||
|
26012
|
26012
K2601-237-04
YUA BAT YB16CL-B
|
K2601-237-04 |
— | ||
|
26030
|
26030
26001-1978 HARNESS,MAIN |
26001-1978 |
US $76.12 |
||
|
26030A
|
26030A
26001-1986 HARNESS |
26001-1986 |
US $51.39 |
||
|
26030B
|
26030B
26001-1988 HARNESS |
26001-1988 |
US $48.13 |
||
|
27002
|
27002
27002-1068 RELAY-ASSY |
27002-1068 |
from US $51.55 |
||
|
27003
|
27003
27003-1317 HORN |
27003-1317 |
from US $48.47 |
||
|
53044
|
53044
53044-1137 TRIM |
53044-1137 |
from US $7.92 |
||
|
92037
|
92037
92037-1903 CLAMPL=80.5 |
92037-1903 |
from US $5.23 |
||
|
92072
|
92072
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
