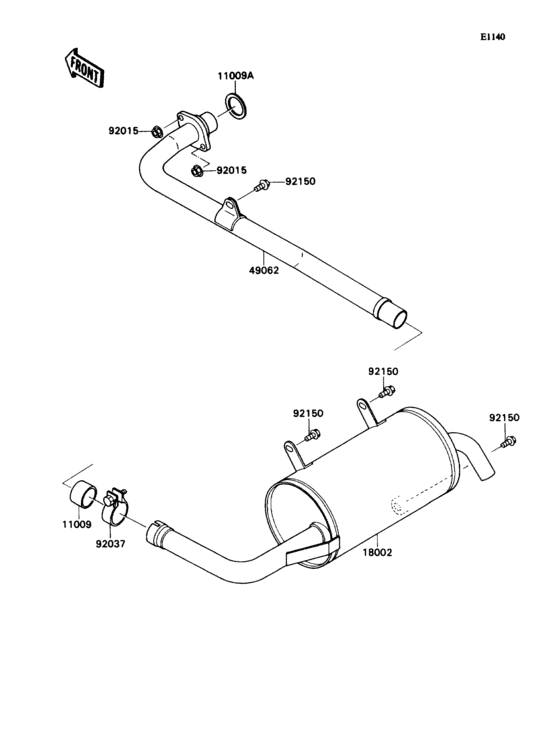

Muffler Diagram Kawasaki KAF540 Mule 2030
- Model code
- KAF540-E1
- Engine Capacity
- 535
- Year
- 1993
- Sales region
- USA
- Colour
- Firecracker Red (B1)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mule 2030
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1638 GASKET,EXHAUST PIPE C |
11009-1638 |
US $22.61 |
||
| replacement | |||||
|
11009
|
11009
11009-1718 GASKET,EXHAUST PIPE C |
11009-1718 |
from US $19.80 |
||
|
11009A
|
11009A
18067020 GASKET,EXHAUST PIPE |
18067020 |
US $9.97 |
||
| replacement | |||||
|
11009A
|
11009A
11060-1242
GASKET,EXHAUST PIPE
|
11060-1242 |
— | ||
|
18002
|
18002
18002-1911
BODY-COMP-MUFFLER
|
18002-1911 |
— | ||
|
49062
|
49062
49062-1058 PIPE-COMP-EXHAUST |
49062-1058 |
US $57.06 |
||
|
92015
|
92015
92015-1302
NUT,LOCK,8MM,BLACK
|
92015-1302 |
— | ||
|
92037
|
92037
92037-1221 CLAMP,MUFFLER |
92037-1221 |
US $11.52 |
||
| replacement | |||||
|
92037
|
92037
92170-1454 CLAMP,MUFFLER |
92170-1454 |
from US $7.44 |
||
|
92150
|
92150
92150-1158 BOLT |
92150-1158 |
from US $2.95 |
||
