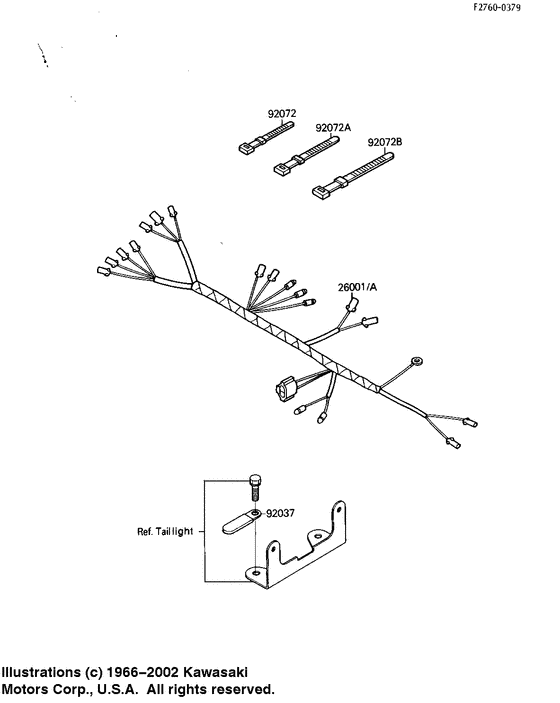

Chassis electrical equipment Diagram Kawasaki KLF110 Mojave 110
- Model code
- KLF110-A2
- Engine Capacity
- 110
- Year
- 1988
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
- Model
- Mojave 110
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26001A
|
26001A
26001-1878 HARNESS,MAINHarness,main; |
26001-1878 |
US $41.44 |
||
|
92037
|
92037
92037-1539 CLAMP,WIRING HARNESSClamp,wiring harness; |
92037-1539 |
from US $3.17 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,l=123; |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-031 BAND,MIDDLEBand,l=149; |
92072-031 |
from US $3.01 |
||
|
92072B
|
92072B
92072-056 BAND,WIRING HARNESSBand,l=186; |
92072-056 |
from US $3.17 |
