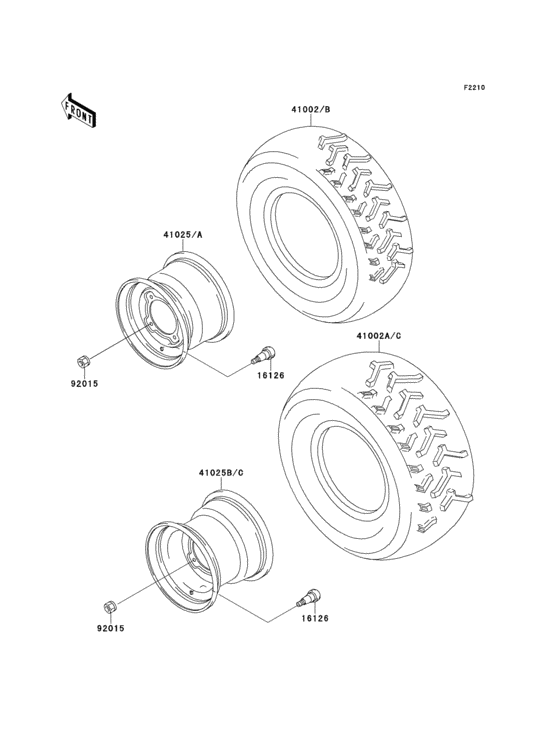

Wheels/tires Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B1
- Engine Capacity
- 391
- Year
- 1993
- Sales region
- Canada
- Colour
- Blue 42 (RT)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41002-1678
Tire,fr,at24x8-11,kt9
|
41002-1678 |
— | ||
| replacement | |||||
|
41002
|
41002
41009-1163
TIRE,FR
|
41009-1163 |
— | ||
|
41002A
|
41002A
41002-1890 Tire,rr,at24x10-11,kt |
41002-1890 |
US $103.30 |
||
| replacement | |||||
|
41002A
|
41002A
41009-1164 TIRE,RR |
41009-1164 |
US $134.37 |
||
|
41025A
|
41025A
41025-1196-8C RIM,FR,11X6.5,J.WHITE |
41025-1196-8C |
US $100.66 |
||
| replacement | |||||
|
41025A
|
41025A
41025-1342-8C RIM,FR,11X6.5,J.WHITE |
41025-1342-8C |
US $100.66 |
||
|
41025C
|
41025C
41025-1268-8C RIM,RR,11X8.0,J.WHITE |
41025-1268-8C |
US $100.66 |
||
| replacement | |||||
|
41025C
|
41025C
41025-1334-8C RIM,RR,11X8.0,J.WHITE |
41025-1334-8C |
US $100.66 |
||
|
92015
|
92015
92015-1808 NUT,LOCK,10MM |
92015-1808 |
US $3.29 |
||
| replacement | |||||
|
92015
|
92015
92210-1204 NUT,LOCK,10MM |
92210-1204 |
from US $5.59 |
||
