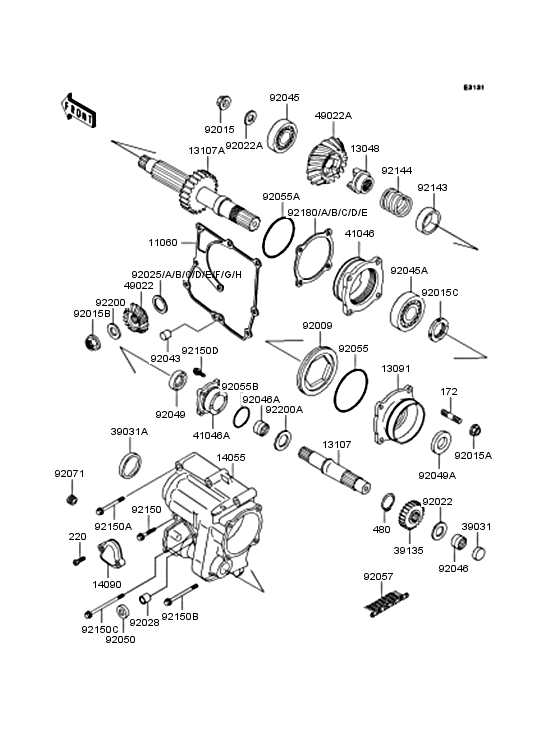

フロントベベルギヤ Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B2
- Engine Capacity
- 391
- Year
- 1994
- Sales region
- Canada
- Colour
- Moon Beam Gray (SK)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
172
|
172
172G0825 STUDウエコミ ボルト，8X25 |
172G0825 |
US $15.30 |
||
| replacement | |||||
|
172
|
172
172BA0825 STUDウエコミ ボルト，8X25 |
172BA0825 |
from US $2.95 |
||
|
220
|
220
220C0620 SCREW-PAN-CROSSナベコネジ(+ジアナ)，6X20 |
220C0620 |
from US $1.27 |
||
| replacement | |||||
|
220
|
220
220AB0620 SCREW-PAN-CROSSナベコネジ(+ジアナ)，6X20 |
220AB0620 |
from US $1.15 |
||
|
480
|
480
480J2500 CIRCLIP-TYPE-C,25MMサ-クリツプ-タイプ-C，25MM; フロント |
480J2500 |
from US $1.27 |
||
|
92046A
|
92046A
92046-1212 BEARING-NEEDLE,NK24/2ベアリング(ニ-ドル)，NK24/20RE |
92046-1212 |
US $28.22 |
||
|
92049
|
92049
92049-1395 SEAL-OIL,AE1252E0シ-ル(オイル)，AE1252E0 |
92049-1395 |
from US $6.22 |
||
|
92049A
|
92049A
92049-1400 SEAL-OIL,AE1265E0シ-ル(オイル)，AE1265E0 |
92049-1400 |
from US $11.46 |
||
|
92050
|
92050
92050-082 OIL SEAL,CHANGE SHAFTオイル シ-ル |
92050-082 |
from US $5.54 |
||
|
92055
|
92055
92055-081 O RINGリング(0) |
92055-081 |
from US $10.27 |
||
|
92055A
|
92055A
92055-1230 RING-O,79.5MMリング(0)，79.5MM |
92055-1230 |
from US $4.59 |
||
|
92055B
|
92055B
92055-1401 RING-O,43.7X1.9リング(0)，43.7X1.9 |
92055-1401 |
from US $8.55 |
||
|
92057
|
92057
92057-1351
CHAIN,BEVEL,63HV303-4
チエ-ン，ベベル，63HV303-42AS |
92057-1351 |
— | ||
|
92071
|
92071
92071-1203 GROMMETグロメツト |
92071-1203 |
US $4.23 |
||
|
92143
|
92143
92143-1657 COLLARカラ-，24.2X33X12 |
92143-1657 |
US $15.80 |
||
|
92144
|
92144
92144-1599 SPRING,BEVELスプリング，ベベル |
92144-1599 |
US $20.05 |
||
|
92150
|
92150
92150-1585 BOLT,8X35ボルト，8X35 |
92150-1585 |
US $3.67 |
||
| replacement | |||||
|
92150
|
92150
132BA0835 BOLT,8X35ボルト，8X35 |
132BA0835 |
from US $3.01 |
||
|
92150A
|
92150A
92150-1586 BOLT,8X60ボルト，8X60 |
92150-1586 |
US $3.76 |
||
|
92150B
|
92150B
92150-1587 BOLT,8X75ボルト，8X75 |
92150-1587 |
US $5.35 |
||
|
92150C
|
92150C
92150-1588 BOLT,8X90ボルト，8X90; オプシヨン |
92150-1588 |
US $5.74 |
||
|
92150D
|
92150D
92150-1597 BOLT-FLANGED-SMALL,6Xボルト，6X20 |
92150-1597 |
US $1.67 |
||
| replacement | |||||
|
92150D
|
92150D
132BA0620 BOLT-FLANGED-SMALL,6X20ボルト，6X20 |
132BA0620 |
from US $1.43 |
||
|
92180
|
92180
92180-1126 SHIM,T=1.00シム |
92180-1126 |
from US $4.98 |
||
|
92180A
|
92180A
92180-1127 SHIM,T=0.10シム; オプシヨン |
92180-1127 |
US $6.19 |
||
|
92180B
|
92180B
92180-1128 SHIM,T=0.15シム |
92180-1128 |
US $6.82 |
||
|
92180C
|
92180C
92180-1129 SHIM,T=0.50シム; オプシヨン |
92180-1129 |
US $6.19 |
||
|
92180D
|
92180D
92180-1130 SHIM,T=0.80シム |
92180-1130 |
US $6.19 |
||
|
92180E
|
92180E
92180-1131 SHIM,T=1.20シム; オプシヨン |
92180-1131 |
US $6.19 |
||
|
92200
|
92200
92200-1104 WASHER,16.3X31X3.2ワツシヤ，16.3X31X3.2 |
92200-1104 |
US $4.55 |
||
|
92200A
|
92200A
92200-1118 WASHER,24.2X40X2.0ワツシヤ，24.2X40X2.0 |
92200-1118 |
US $3.96 |
||
