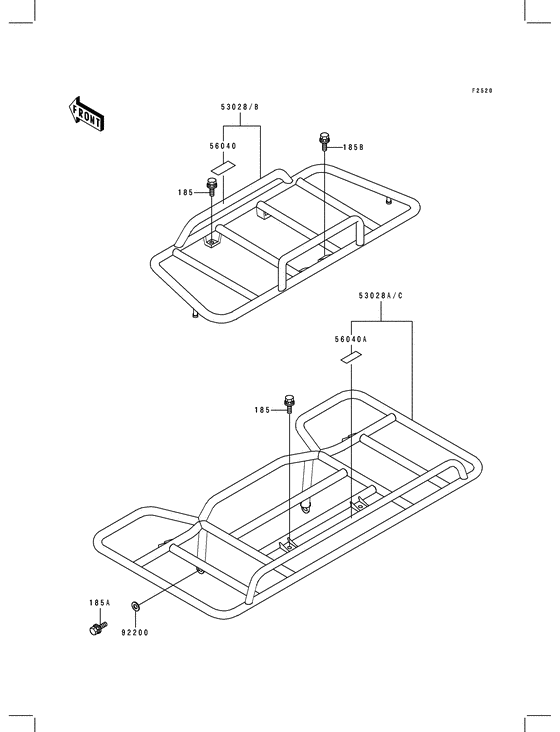

Carrier Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B3
- Engine Capacity
- 391
- Year
- 1995
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53028
|
53028
53028-1072 CARRIER-ASSY,FRCarrier-assy,fr; |
53028-1072 |
US $147.17 |
||
|
53028A
|
53028A
53028-1073 CARRIER-ASSY,RRCarrier-assy,rr; |
53028-1073 |
US $241.13 |
||
|
53028B
|
53028B
53028-1074 CARRIER-ASSY,FRCarrier-assy,fr; |
53028-1074 |
US $131 |
||
|
53028C
|
53028C
53028-1075 CARRIER-ASSY,RRCarrier-assy,rr; |
53028-1075 |
US $214.63 |
||
|
56040
|
56040
56040-1321 LABEL-WARNING,MAXIMUMLabel-warning,maximum load; |
56040-1321 |
from US $4.35 |
||
|
56040A
|
56040A
56040-1322 LABEL-WARNING,MAXIMUMLabel-warning,maximum load; |
56040-1322 |
from US $2.47 |
||
|
92200
|
92200
92200-1055 WASHER,8.5X20X2.3Washer,8.5x20x2.3; |
92200-1055 |
from US $2.38 |
||
|
185
|
185
185C0816 BOLT-UPSET-WSP-SMALL |
185C0816 |
from US $1.43 |
||
| replacement | |||||
|
185
|
185
185AB0816 BOLT-UPSET-WSP-SMALL |
185AB0816 |
from US $1.24 |
||
|
185A
|
185A
185J0820 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x20; |
185J0820 |
US $4.12 |
||
| replacement | |||||
|
185A
|
185A
185BB0820 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x20; |
185BB0820 |
from US $1.24 |
||
|
185B
|
185B
185J0835 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x35; |
185J0835 |
US $2.09 |
||
| replacement | |||||
|
185B
|
185B
185BB0835 BOLT-UPSET-WSP-SMALL,Bolt-upset-wsp-small,8x35; |
185BB0835 |
from US $1.40 |
||
