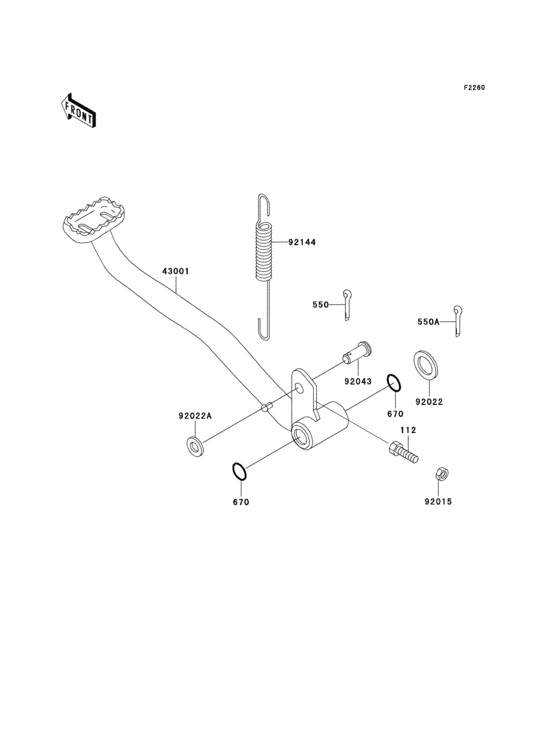

Brake pedal Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B4
- Engine Capacity
- 391
- Year
- 1996
- Sales region
- Australia
- Colour
- Meadow Green (KK)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112D0622 BOLT-UPSET |
112D0622 |
US $4 |
||
| replacement | |||||
|
112
|
112
112AA0622 BOLT-UPSET |
112AA0622 |
from US $0.94 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
550A
|
550A
550D2525 PIN-COTTER,2.5X25 |
550D2525 |
from US $1.27 |
||
| replacement | |||||
|
550A
|
550A
550AA2525 PIN-COTTER,2.5X25 |
550AA2525 |
from US $0.63 |
||
|
670
|
670
670B2015 O RING,15MM |
670B2015 |
from US $1.77 |
||
|
43001
|
43001
43001-1311 LEVER-BRAKE,PEDAL |
43001-1311 |
US $77.09 |
||
|
92015
|
92015
92015-1410 NUT,6MM |
92015-1410 |
from US $2.33 |
||
|
92022
|
92022
92022-1049 WASHER,15.5X24X1.6 |
92022-1049 |
from US $3.57 |
||
|
92022A
|
92022A
92022-1582
WASHER-PLAIN-SMALL,8M
|
92022-1582 |
— | ||
| replacement | |||||
|
92022A
|
92022A
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
92043
|
92043
92043-1013 PIN |
92043-1013 |
from US $6.65 |
||
|
92144
|
92144
92144-1317 SPRING,BRAKE PEDAL RE |
92144-1317 |
from US $6.06 |
||
