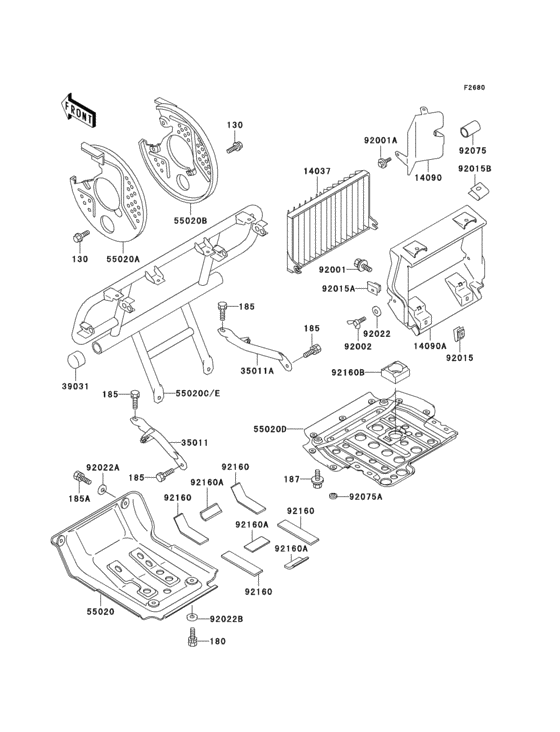

Guard(s) Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B6
- Engine Capacity
- 391
- Year
- 1998
- Sales region
- Europe
- Frame
- LF400B 603401 - 604100
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0610 BOLT-FLANGED,6X10 |
130BA0610 |
from US $0.79 |
||
|
180
|
180
180BB0616 BOLT-UPSET-WS,6X16 |
180BB0616 |
from US $1.27 |
||
|
185
|
185
185J0820 BOLT-UPSET-WSP-SMALL, |
185J0820 |
US $4.12 |
||
| replacement | |||||
|
185
|
185
185BB0820 BOLT-UPSET-WSP-SMALL, |
185BB0820 |
from US $1.24 |
||
|
185A
|
185A
185BB0825 BOLT-UPSET-WSP-SMALL, |
185BB0825 |
from US $1.40 |
||
|
187
|
187
187J0616 BOLT-UPSET-WSP |
187J0616 |
US $0.92 |
||
| replacement | |||||
|
187
|
187
187BB0616 BOLT-UPSET-WSP |
187BB0616 |
from US $0.92 |
||
|
14037
|
14037
14037-1154 SCREEN |
14037-1154 |
US $30.80 |
||
|
14090
|
14090
14090-1225 COVER,RADIATOR |
14090-1225 |
US $30.60 |
||
|
14090A
|
14090A
14090-1490 COVER,RADIATOR |
14090-1490 |
US $61.94 |
||
|
35011
|
35011
35011-1595 STAY,FRONT GUARD,LH |
35011-1595 |
US $29.59 |
||
|
35011A
|
35011A
35011-1596 STAY,FRONT GUARD,RH |
35011-1596 |
US $29.59 |
||
|
39031
|
39031
39031-1059 CAP-END,BUMPER PIPE |
39031-1059 |
from US $5.44 |
||
|
55020
|
55020
55020-1303 GUARD,FRONT DIFF |
55020-1303 |
from US $53.19 |
||
|
55020A
|
55020A
55020-1304 GUARD,FRONT DISC,LH |
55020-1304 |
from US $27.84 |
||
|
55020B
|
55020B
55020-1305 GUARD,FRONT DISC,RH |
55020-1305 |
from US $27.84 |
||
|
55020C
|
55020C
55020-1417
GUARD,FR
|
55020-1417 |
— | ||
|
55020D
|
55020D
55020-1468 GUARD,ENGINE |
55020-1468 |
US $58.81 |
||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16 |
92001-1763 |
from US $3.01 |
||
|
92001A
|
92001A
92001-1764
BOLT,W/SP,6X18
|
92001-1764 |
— | ||
|
92002
|
92002
92002-1599
BOLT,WING
|
92002-1599 |
— | ||
|
92015
|
92015
92015-1487 NUT |
92015-1487 |
from US $4.25 |
||
|
92015A
|
92015A
92015-1602 NUT,6MM |
92015-1602 |
from US $3.96 |
||
|
92015B
|
92015B
92015-1691 NUT,8MM |
92015-1691 |
from US $4.82 |
||
|
92022
|
92022
92022-1258 WASHER,7.2X21 |
92022-1258 |
US $3.37 |
||
|
92022A
|
92022A
92022-1317 WASHER,8.5X20X1.6,BLA |
92022-1317 |
from US $2.69 |
||
|
92022B
|
92022B
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.82 |
||
|
92075
|
92075
92075-1369 DAMPER,FUEL TANK,FR |
92075-1369 |
from US $4.75 |
||
|
92075A
|
92075A
92075-1573 DAMPER,INTAKE COVER |
92075-1573 |
US $3.37 |
||
|
92160A
|
92160A
92075-1830 DAMPER |
92075-1830 |
from US $3.80 |
||
|
92160B
|
92160B
92160-1658 DAMPER |
92160-1658 |
US $13.23 |
||
