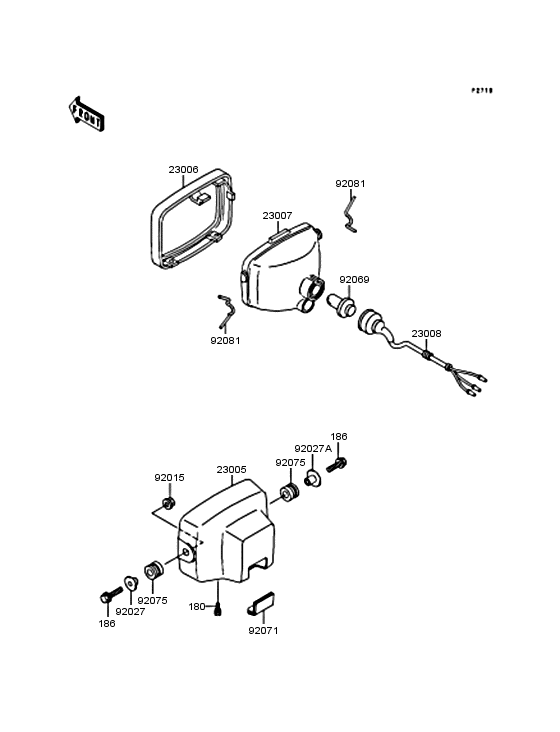

Headlight Diagram Kawasaki KLF400 Bayou 400
- Model code
- KLF400-B7
- Engine Capacity
- 391
- Year
- 1999
- Sales region
- Canada
- Colour
- Colored Plastic Hunter Green (6A)
- Engine
- LF400AE 500001 -
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180C0512 BOLT-UPSET-WSボルト(アプセツトバネツキ) |
180C0512 |
US $2.12 |
||
| replacement | |||||
|
180
|
180
180AB0512 BOLT-UPSET-WSボルト(アプセツトバネツキ) |
180AB0512 |
from US $1.09 |
||
|
186
|
186
186B0630 BOLT-UPSET-WPボルト(アプセツトヒラツキ) |
186B0630 |
US $0.67 |
||
| replacement | |||||
|
186
|
186
186AA0630 BOLT-UPSET-WPボルト(アプセツトヒラツキ) |
186AA0630 |
from US $1.09 |
||
|
23005
|
23005
23005-1018-6Z BODY-COMP-HEAD LAMPボデイコンプ(ヘツドランプ)，ブラツク |
23005-1018-6Z |
from US $58.94 |
||
| replacement | |||||
|
23005
|
23005
23005-1018 BODY-COMP-HEAD LAMPボデイコンプ(ヘツドランプ)，ブラツク |
23005-1018 |
from US $51.32 |
||
|
23006
|
23006
23006-1058 RIM-LAMPリム(ランプ) |
23006-1058 |
from US $43.59 |
||
|
23007
|
23007
23007-1274 Lens-comp,head lampレンズコンプ，ヘツド ランプ |
23007-1274 |
from US $44.78 |
||
|
23008
|
23008
23008-1357
SOCKET-ASSY,HEAD LAMP
ソケツトアツシ，ヘツド ランプ |
23008-1357 |
— | ||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1367 |
from US $3.01 |
||
|
92027
|
92027
92027-1045 COLLARカラ-，L=9.6 |
92027-1045 |
from US $3.33 |
||
|
92027A
|
92027A
92027-251
COLLAR
カラ-，L=13.1 |
92027-251 |
— | ||
| replacement | |||||
|
92027A
|
92027A
92152-0365 COLLARカラ-，L=13.1 |
92152-0365 |
from US $0.91 |
||
|
92069
|
92069
92069-1010 BULBバルブ，12V 25/25W |
92069-1010 |
from US $10.70 |
||
|
92071
|
92071
92071-1205 GROMMET,HEAD LAMPグロメツト，ヘツド ランプ |
92071-1205 |
from US $5.13 |
||
|
92075
|
92075
92075-277 DAMPER RUBBERダンパ |
92075-277 |
from US $3.60 |
||
|
92081
|
92081
92081-1421 SPRING,HEAD LAMPスプリング |
92081-1421 |
from US $3.80 |
||
