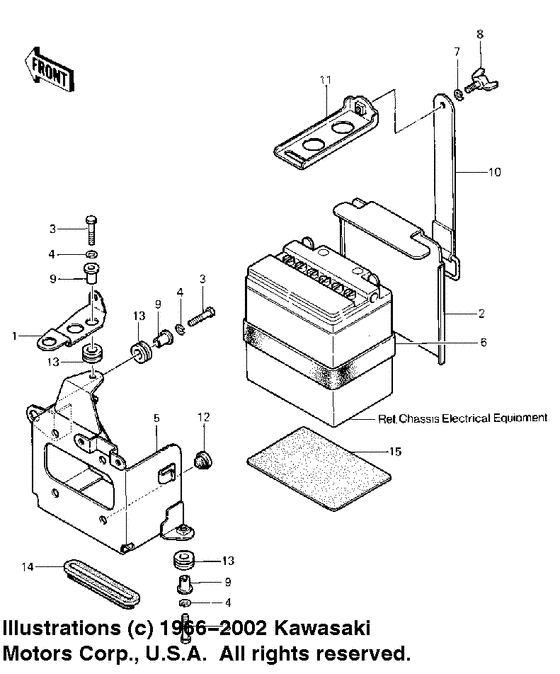

Battery case ('83 c1) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-C1
- Engine Capacity
- 250
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11034-4213 BRACKET,BATTERY CASEBracket,battery case; |
11034-4213 |
US $16.15 |
||
|
2
|
2
14025-4007
COVER
|
14025-4007 |
— | ||
|
3
|
3
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
3
|
3
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
4
|
4
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
4
|
4
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
5
|
5
32097-4006 CASE-BATTERY |
32097-4006 |
US $46.08 |
||
|
6
|
6
32103023
MAT-BATTERY SIDE
Mat-battery side; |
32103023 |
— | ||
|
7
|
7
461F0600
WASHER-SPRING,6MM
Washer,sping,6mm; |
461F0600 |
— | ||
| replacement | |||||
|
7
|
7
461DA0600 WASHER-SPRING,6MMWasher,sping,6mm; |
461DA0600 |
from US $0.55 |
||
|
8
|
8
92003-199
BOLT,CLNR ELEMENT
Bolt,clnr element; |
92003-199 |
— | ||
|
9
|
9
92027-1045 COLLAR |
92027-1045 |
from US $3.33 |
||
|
10
|
10
92072-4005 BAND,BATTERYBand,battery; |
92072-4005 |
US $62.23 |
||
|
11
|
11
92072-4006
BAND,BATTERY
Band,battery; |
92072-4006 |
— | ||
|
12
|
12
92075-078 DAMPER RUBBERDamper rubber; |
92075-078 |
from US $3.33 |
||
|
13
|
13
92075-277 DAMPER RUBBERDamper rubber; |
92075-277 |
from US $3.60 |
||
|
14
|
14
92075-280 DAMPER RUBBERDamper rubber; |
92075-280 |
US $4.12 |
||
|
15
|
15
92075-4019
DAMPER,BATTRY CASE
Damper,battry case; |
92075-4019 |
— | ||
