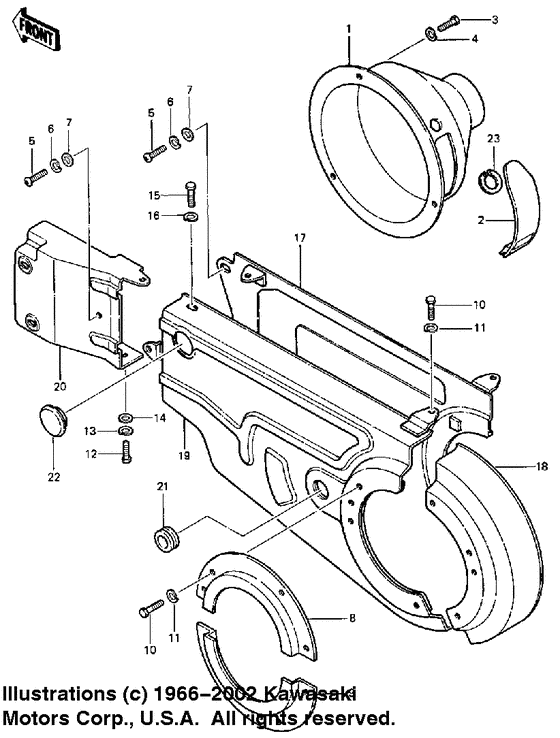

Chain case ('83 c1) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-C1
- Engine Capacity
- 250
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14025-4009 COVER,DIFFERENTIALCover,differential; |
14025-4009 |
US $50.99 |
||
|
2
|
2
14025-4010
COVER,DIFFERENTIAL
Cover,differential; |
14025-4010 |
— | ||
|
3
|
3
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
3
|
3
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
4
|
4
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
4
|
4
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
5
|
5
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
5
|
5
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
5
|
5
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
6
|
6
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
6
|
6
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
7
|
7
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
7
|
7
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
8
|
8
11036-1454 BRACKET,LARGEBracket,large; |
11036-1454 |
US $15.35 |
||
|
9
|
9
11036-1455 BRACKET,SMALLBracket,small; |
11036-1455 |
US $10.24 |
||
|
10
|
10
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
10
|
10
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
11
|
11
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
11
|
11
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
12
|
12
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
12
|
12
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
12
|
12
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
13
|
13
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
13
|
13
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
14
|
14
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
14
|
14
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
15
|
15
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
15
|
15
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
16
|
16
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
16
|
16
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
17
|
17
36014-1041
CASE-CHAIN,INNER
Case-chain,inner; |
36014-1041 |
— | ||
|
18
|
18
36014-1059 CASE-CHAIN,RRCase-chain,rr; |
36014-1059 |
US $53.95 |
||
|
19
|
19
36014-1060 CASE-CHAIN,FRCase-chain,fr; |
36014-1060 |
US $115.16 |
||
|
20
|
20
36014-4011
CASE CHAIN,FR
Case chain,fr; |
36014-4011 |
— | ||
|
21
|
21
92071-012 GROMMET HARNESS 22MM |
92071-012 |
from US $3.27 |
||
|
22
|
22
92074-004
PLUG CHAIN CASE
Plug chain case; |
92074-004 |
— | ||
|
23
|
23
480J2000 CIRCLIP, 20MMCirclip, 20mm; |
480J2000 |
from US $1.27 |
||
