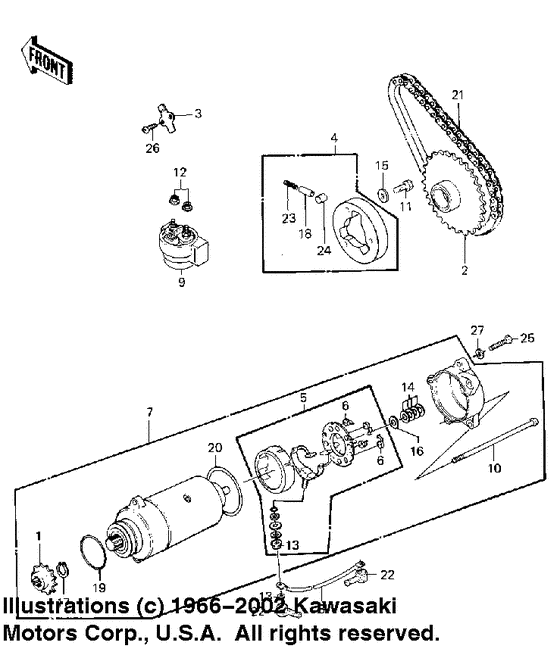

Starter motor/starter clutch ('83 c1) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-C1
- Engine Capacity
- 250
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12046-1004 SPROCKET,STARTER MOTOSprocket,starter moto; |
12046-1004 |
US $46.44 |
||
|
2
|
2
12046-1023
SPROCKET,STARTER
Sprocket,starter; |
12046-1023 |
— | ||
|
3
|
3
13169-1010 PLATE |
13169-1010 |
US $4.52 |
||
|
4
|
4
13193-1006 CLUTCH ASSY,STARTINGClutch assy,starting; |
13193-1006 |
from US $143.14 |
||
|
5
|
5
21039-1053 BRUSH,CARBONBrush,carbon; |
21039-1053 |
from US $100.53 |
||
|
6
|
6
21040-1003 SPRING-BRUSH |
21040-1003 |
from US $7.13 |
||
|
7
|
7
21163-1036 STARTER, ELECTRIC |
21163-1036 |
US $430.20 |
||
| replacement | |||||
|
7
|
7
21163-1238 STARTER, ELECTRIC |
21163-1238 |
US $430.20 |
||
|
8
|
8
26011-1201 WIRE-LEAD,STARTER MOTWire-lead,starter mot; |
26011-1201 |
US $43.47 |
||
| replacement | |||||
|
8
|
8
26011-1709 WIRE-LEAD,STARTER MOTWire-lead,starter mot; |
26011-1709 |
from US $28.77 |
||
|
9
|
9
27010-1314 SWITCH,STARTERSwitch,starter; |
27010-1314 |
from US $50.81 |
||
|
10
|
10
92001-1046 SCREW,PAN HEAD,6X130Screw,pan head,6x130; |
92001-1046 |
US $8.10 |
||
|
11
|
11
120P0816 BOLT-SOCKETBolt; |
120P0816 |
US $1.74 |
||
| replacement | |||||
|
11
|
11
120CA0816 BOLT-SOCKETBolt; |
120CA0816 |
from US $1.27 |
||
|
12
|
12
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
12
|
12
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
13
|
13
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
13
|
13
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
14
|
14
21025011 WASHER,THRUST,0.2TWasher,thrust,0.2t; |
21025011 |
from US $4.28 |
||
|
15
|
15
92022-1108 WASHER,PLAINWasher,plain; |
92022-1108 |
from US $3.37 |
||
|
16
|
16
92022-1132 WASHER,THRUST,0.8TWasher,thrust,0.8t; |
92022-1132 |
from US $3.48 |
||
|
17
|
17
92033-037 CIRCLIP,13M/MCirclip,13m/m; |
92033-037 |
from US $6.49 |
||
|
18
|
18
92043-087 PIN |
92043-087 |
from US $8.71 |
||
|
19
|
19
21027005
0 RING,42.8MM
"0" ring,42.8mm; |
21027005 |
— | ||
| replacement | |||||
|
19
|
19
92055-1313 RING-O"0" ring,42.8mm; |
92055-1313 |
from US $5.39 |
||
|
20
|
20
92055-1086 0 RING,STARTER MOTR"0" ring,starter motr; |
92055-1086 |
from US $6.34 |
||
|
21
|
21
92057-1009 CHAIN,DYNAMOChain,dynamo; |
92057-1009 |
from US $33.36 |
||
|
22
|
22
21017-020
CAP,STARTING MOTOR
Cap,starting motor; |
21017-020 |
— | ||
|
23
|
23
92081-110 SPRING |
92081-110 |
from US $3.48 |
||
|
24
|
24
92122001 PINPin; |
92122001 |
from US $6.38 |
||
|
25
|
25
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
25
|
25
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
26
|
26
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
26
|
26
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
27
|
27
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
27
|
27
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
