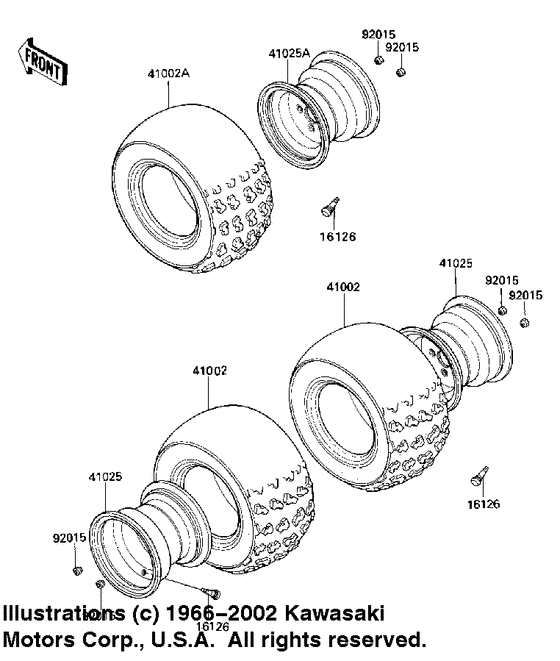

Wheels tires ('84-'85 c2/c3) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-C3
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIREValve,tire; |
16126-4001 |
from US $12.48 |
||
|
41002
|
41002
41002-4013
TIRE 25X12-9 KNOBBY R
|
41002-4013 |
— | ||
|
41002A
|
41002A
41002-4014
TIRE 22X11-8 KNOBBY F
|
41002-4014 |
— | ||
|
41025
|
41025
41025-1123-8T
RIM,RR,GOLD
Rim,rr,gold; |
41025-1123-8T |
— | ||
|
41025A
|
41025A
41025-4005
RIM
|
41025-4005 |
— | ||
|
92015
|
92015
92015-4005 NUT |
92015-4005 |
US $0.45 |
