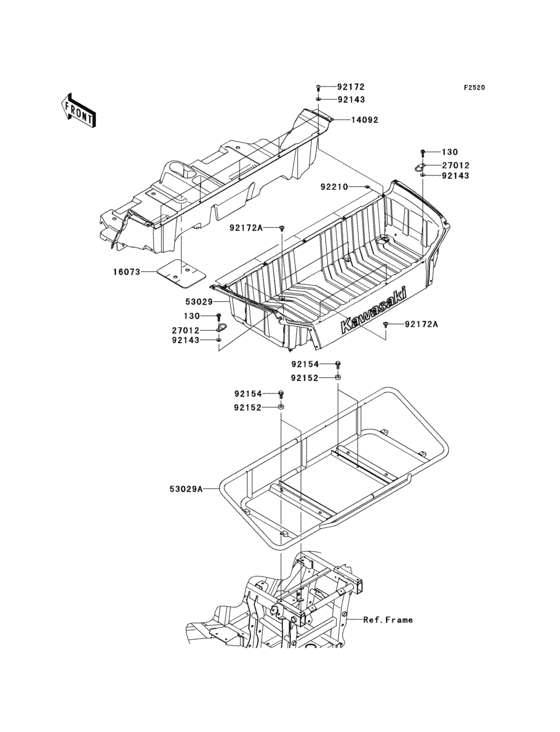

Carrier(s) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS
- Model code
- KRT750BCF
- Engine Capacity
- 749
- Year
- 2012
- Sales region
- Canada
- Colour
- Colored Plastic Vibrant Blue (40D)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0622 BOLT,6X22 |
130BB0622 |
from US $2.53 |
||
|
27012
|
27012
27012-0734 HOOK |
27012-0734 |
from US $2.02 |
||
|
53029
|
53029
53029-0309 CARRIER |
53029-0309 |
from US $290.80 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92154
|
92154
92154-0100 BOLT,FLANGED,8X20 |
92154-0100 |
from US $1.40 |
||
| replacement | |||||
|
92154
|
92154
92154-7267 Bolt,Flanged,8X20 |
92154-7267 |
US $3.69 |
||
|
92172
|
92172
92172-0488 SCREW,TAPPING,6X20 |
92172-0488 |
from US $1.27 |
||
|
92172A
|
92172A
92172-0711 SCREW,6X16 |
92172-0711 |
from US $1.24 |
||
|
92210
|
92210
92210-0624 NUT,LEAF SPRING,6MM |
92210-0624 |
from US $0.94 |
||
