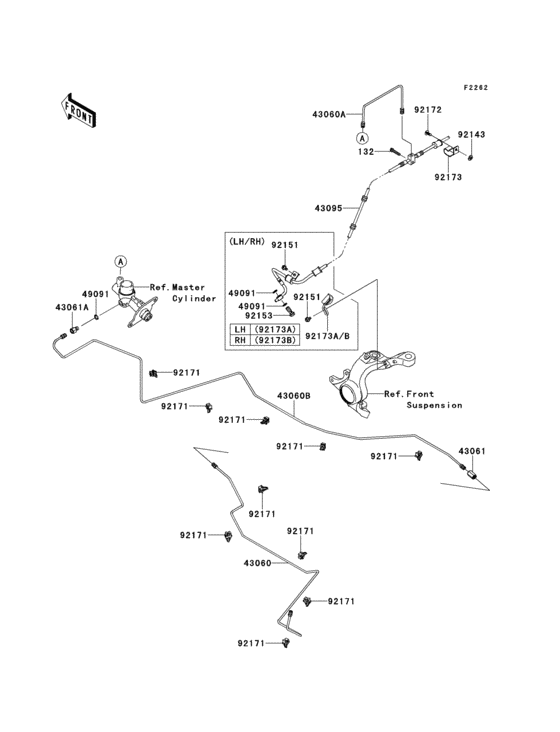

Brake piping Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS
- Model code
- KRT750BDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Colored Plastic Schnee White (266)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0630 BOLT-FLANGED-SMALL |
132BA0630 |
from US $1.27 |
||
|
43061
|
43061
43061-0003 JOINT-BRAKE |
43061-0003 |
from US $27.22 |
||
|
43095
|
43095
43095-0618 HOSE-BRAKE |
43095-0618 |
from US $186.62 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92151
|
92151
92151-1344 BOLT |
92151-1344 |
from US $1.27 |
||
|
92153
|
92153
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92171
|
92171
92171-0805 CLAMP |
92171-0805 |
from US $1.71 |
||
|
92172
|
92172
92172-0739 SCREW,TAPPING,6X16 |
92172-0739 |
from US $0.32 |
||
|
92173
|
92173
92173-0930 CLAMP |
92173-0930 |
from US $7 |
||
|
92173A
|
92173A
92173-0934 CLAMP |
92173-0934 |
from US $10.27 |
||
|
92173B
|
92173B
92173-0935 CLAMP |
92173-0935 |
from US $10.27 |
