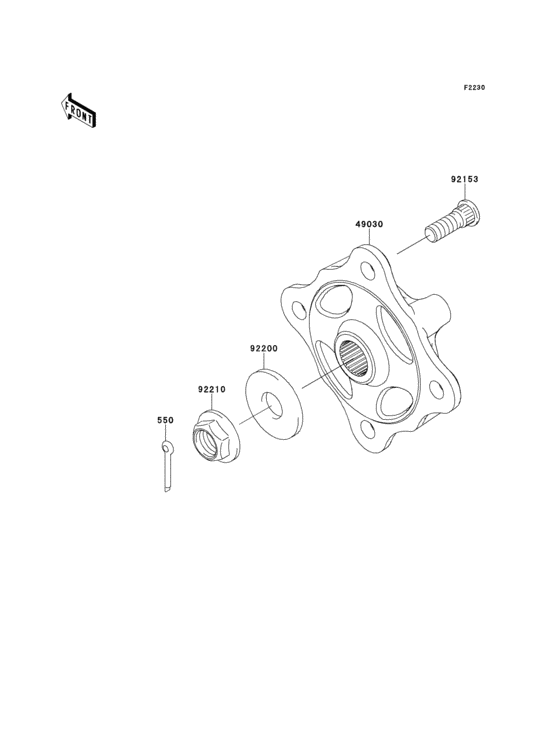

Front hubs/brakes Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS LE
- Model code
- KRT750CDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Colored Plastic Firecracker Red (6L)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550AA4030 PIN-COTTER,4.0X30 |
550AA4030 |
from US $0.94 |
||
|
49030
|
49030
49030-0560 HUB,FR |
49030-0560 |
from US $172.98 |
||
|
92153
|
92153
92153-1915 BOLT,12MM |
92153-1915 |
from US $2.88 |
||
|
92200
|
92200
92200-0130 WASHER,20.3X52X4.5 |
92200-0130 |
from US $10.27 |
||
|
92210
|
92210
92210-2093 NUT,FLANGED,20MM |
92210-2093 |
from US $5.76 |
