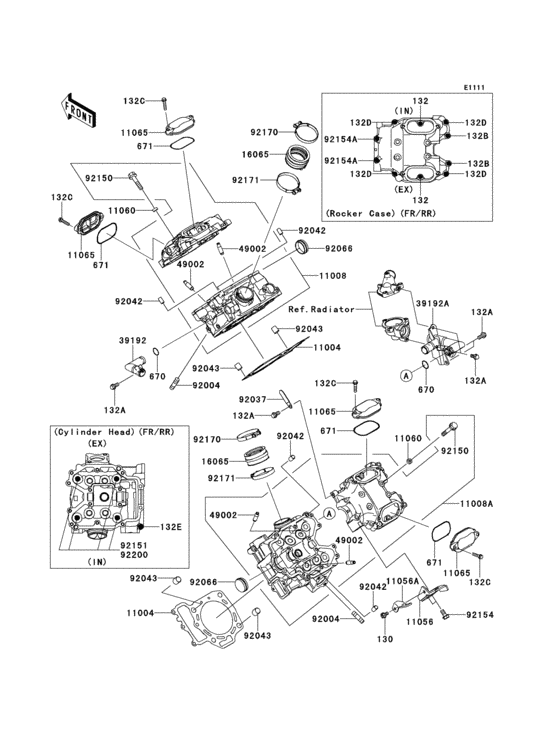

Cylinder head Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
132A
|
132A
132BD0612 BOLT-FLANGED-SMALL,6X |
132BD0612 |
from US $0.95 |
||
|
132B
|
132B
132BD0620 BOLT-FLANGED-SMALL |
132BD0620 |
from US $1.11 |
||
|
132C
|
132C
132BD0625 BOLT-FLANGED-SMALL,6X |
132BD0625 |
from US $1.27 |
||
|
132D
|
132D
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
132E
|
132E
132BD0695 BOLT-FLANGED-SMALL |
132BD0695 |
from US $1.56 |
||
|
670
|
670
670B2016 O RING,16MM |
670B2016 |
from US $1.70 |
||
|
671
|
671
671D2555 O RING,55MM |
671D2555 |
from US $1.71 |
||
|
11004
|
11004
11004-0713 GASKET-HEAD |
11004-0713 |
from US $26.78 |
||
|
11008
|
11008
11008-0735 HEAD-COMP-CYLINDER,FR |
11008-0735 |
from US $744.94 |
||
|
11008A
|
11008A
11008-0736 HEAD-COMP-CYLINDER,RR |
11008-0736 |
from US $744.94 |
||
|
11056
|
11056
11056-1410 BRACKET |
11056-1410 |
from US $12.90 |
||
|
11056A
|
11056A
11056-1411 BRACKET |
11056-1411 |
from US $3.57 |
||
|
11060
|
11060
11060-1994 GASKET,6.2X12X0.3 |
11060-1994 |
from US $1.44 |
||
|
11065
|
11065
11065-0724 CAP,ROCKER CASE |
11065-0724 |
from US $7.62 |
||
|
16065
|
16065
16065-0118 HOLDER-CARBURETOR |
16065-0118 |
from US $7.93 |
||
|
39192
|
39192
39192-0119 PIPE-WATER,FR |
39192-0119 |
from US $21.15 |
||
|
39192A
|
39192A
39192-0120 PIPE-WATER,RR |
39192-0120 |
from US $51.78 |
||
|
49002
|
49002
49002-0706 GUIDE-VALVE |
49002-0706 |
from US $16.65 |
||
|
92004
|
92004
92004-1217 STUD |
92004-1217 |
from US $3.48 |
||
|
92037
|
92037
92037-1993 CLAMP |
92037-1993 |
from US $3.33 |
||
|
92042
|
92042
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92043
|
92043
92043-4009 PIN,10.1X12X14 |
92043-4009 |
from US $3.64 |
||
|
92066
|
92066
92066-1289 PLUG |
92066-1289 |
from US $8.09 |
||
|
92150
|
92150
92150-1302 BOLT,6X55 |
92150-1302 |
from US $3.80 |
||
|
92151
|
92151
92151-1917 BOLT |
92151-1917 |
from US $10.73 |
||
|
92154
|
92154
92154-0885 BOLT,FLANGED,8X20 |
92154-0885 |
from US $0.94 |
||
|
92170
|
92170
92170-1448 CLAMP |
92170-1448 |
from US $5.39 |
||
|
92171
|
92171
92171-0722 CLAMP |
92171-0722 |
from US $7.62 |
||
|
92200
|
92200
92200-1128 WASHER,11.5X20.5X1.6 |
92200-1128 |
from US $3.17 |
