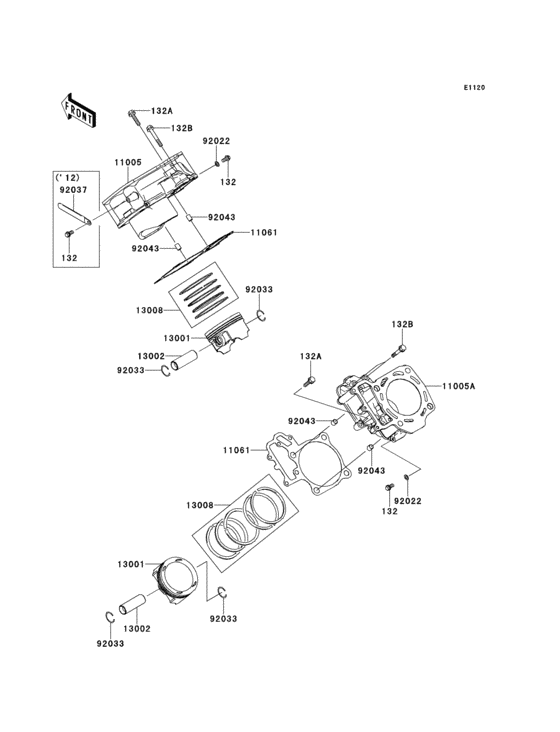

Cylinder/piston(s) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BD0612 BOLT-FLANGED-SMALL,6X |
132BD0612 |
from US $0.95 |
||
|
132A
|
132A
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
132B
|
132B
132BD0640 BOLT |
132BD0640 |
from US $1.27 |
||
|
11005
|
11005
11005-0576 CYLINDER-ENGINE,FR |
11005-0576 |
from US $587.87 |
||
|
11005A
|
11005A
11005-0577 CYLINDER-ENGINE,RR |
11005-0577 |
from US $587.87 |
||
|
11061
|
11061
11061-0730 GASKET,CYLINDER BASE |
11061-0730 |
from US $19.15 |
||
|
13001
|
13001
13001-0718 PISTON-ENGINE |
13001-0718 |
from US $102.48 |
||
|
13002
|
13002
13002-0711 PIN-PISTON |
13002-0711 |
from US $26.61 |
||
|
13008
|
13008
13008-0042 RING-SET-PISTON |
13008-0042 |
from US $48.95 |
||
|
92022
|
92022
92022-304 WASHER,PLAIN |
92022-304 |
from US $2.53 |
||
|
92033
|
92033
92033-1207 RING-SNAP |
92033-1207 |
from US $2.69 |
||
|
92043
|
92043
92043-4009 PIN,10.1X12X14 |
92043-4009 |
from US $3.64 |
