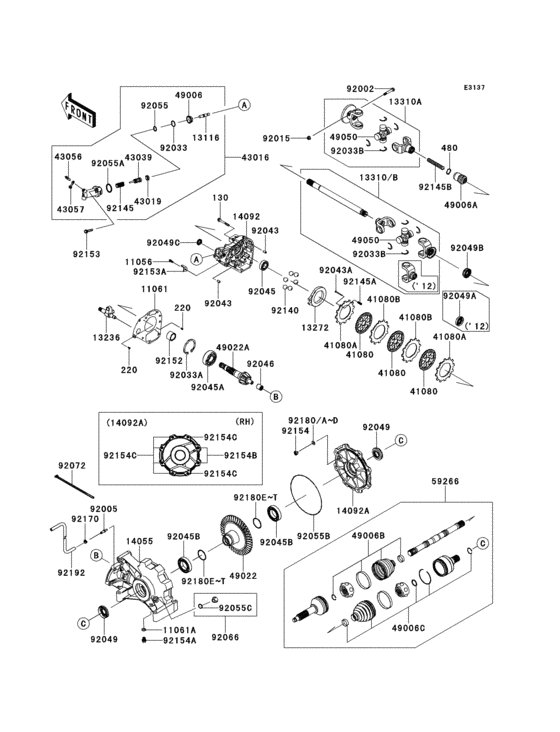

Drive shaft-rear(1/3) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA0860 BOLT-FLANGED,8X60 |
130CA0860 |
from US $1.43 |
||
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
480
|
480
480J2500 CIRCLIP-TYPE-C,25MM |
480J2500 |
from US $1.27 |
||
|
11056
|
11056
11056-1447 BRACKET |
11056-1447 |
from US $2.17 |
||
|
11061
|
11061
11061-0270 GASKET,FR COVER |
11061-0270 |
from US $18.50 |
||
|
11061A
|
11061A
11061-0759 GASKET,DRAIN |
11061-0759 |
from US $1.56 |
||
|
13116
|
13116
13116-0026 ROD-PUSH |
13116-0026 |
from US $21.93 |
||
|
13272
|
13272
13272-1203 PLATE,CAM |
13272-1203 |
from US $28.77 |
||
|
13310
|
13310
13310-0029 SHAFT-ASSY,GEAR ASSY |
13310-0029 |
from US $500.11 |
||
|
13310A
|
13310A
13310-0555 SHAFT-ASSY,ENGINE SID |
13310-0555 |
from US $408.05 |
||
|
14055
|
14055
14055-0599 CASE-GEAR |
14055-0599 |
from US $451.54 |
||
|
14092
|
14092
14092-0128 COVER,FR |
14092-0128 |
from US $100.63 |
||
|
14092A
|
14092A
14092-0846 COVER |
14092-0846 |
from US $257.96 |
||
|
41080
|
41080
41080-1482 DISC,FRICTION |
41080-1482 |
from US $30.95 |
||
|
41080A
|
41080A
41080-1483 DISC,PRESSURE |
41080-1483 |
from US $11.51 |
||
|
41080B
|
41080B
41080-1484 DISC,SEPARATER |
41080-1484 |
from US $11.51 |
||
|
43016
|
43016
43016-0556 CYLINDER-MASTER |
43016-0556 |
from US $181.96 |
||
|
43019
|
43019
43019-0002 CUP-BRAKE |
43019-0002 |
from US $2.79 |
||
|
43039
|
43039
43039-0006 PISTON-BRAKE |
43039-0006 |
from US $24.57 |
||
|
43056
|
43056
43056-1056 BREATHER,BRAKE |
43056-1056 |
from US $10.14 |
||
|
43057
|
43057
43057-1001 CAP-BREATHER |
43057-1001 |
from US $3.48 |
||
|
49006
|
49006
49006-0072 BOOT |
49006-0072 |
from US $5.60 |
||
|
49006A
|
49006A
49006-0089 BOOT |
49006-0089 |
from US $16.79 |
||
|
49022A
|
49022A
49022-0568 GEAR-BEVEL,10T |
49022-0568 |
from US $293.28 |
||
|
49050
|
49050
49050-0027 SPIDER |
49050-0027 |
from US $136.40 |
||
|
92002
|
92002
92002-1221 BOLT |
92002-1221 |
from US $5.07 |
||
|
92005
|
92005
92005-0729 FITTING,BREATHER |
92005-0729 |
from US $15.50 |
||
|
92015
|
92015
92015-1432 NUT,8MM |
92015-1432 |
from US $3.80 |
||
|
92033
|
92033
92033-0055 RING-SNAP |
92033-0055 |
from US $1.71 |
||
|
92033A
|
92033A
92033-0713 RING-SNAP |
92033-0713 |
from US $5.35 |
||
|
92033B
|
92033B
92033-0718 RING-SNAP |
92033-0718 |
US $2.02 |
||
| replacement | |||||
|
92033B
|
92033B
92033-0735 RING-SNAP |
92033-0735 |
from US $0.78 |
||
|
92043
|
92043
92043-1567 PIN,8X14 |
92043-1567 |
from US $1.43 |
||
|
92043A
|
92043A
92043-1617 PIN,3X35 |
92043-1617 |
from US $1.09 |
||
|
92045
|
92045
92045-0077
BEARING-BALL,#6005
|
92045-0077 |
— | ||
| replacement | |||||
|
92045
|
92045
601A6005 BEARING-BALL |
601A6005 |
from US $10.93 |
||
|
92049C
|
92049C
92049-1537 SEAL-OIL,TC17X28X6 |
92049-1537 |
from US $6.34 |
||
|
92055
|
92055
92055-0146 RING-O |
92055-0146 |
from US $2.49 |
||
|
92055A
|
92055A
92055-0147 RING-O |
92055-0147 |
from US $3.27 |
||
|
92055B
|
92055B
92055-0722 RING-O |
92055-0722 |
from US $6.38 |
||
|
92066
|
92066
92066-0728 PLUG |
92066-0728 |
from US $3.11 |
||
|
92072
|
92072
92072-1237 BAND,L=250 |
92072-1237 |
from US $2.74 |
||
|
92140
|
92140
92140-1064 BALL,D/O#12 |
92140-1064 |
from US $1.09 |
||
|
92145
|
92145
92145-0882 SPRING |
92145-0882 |
from US $8.50 |
||
|
92145A
|
92145A
92145-1301 SPRING,RR BRAKE |
92145-1301 |
from US $0.94 |
||
|
92145B
|
92145B
92145-1304 SPRING,PROPELLER SHAFT |
92145-1304 |
from US $4 |
||
|
92152
|
92152
92152-1525 COLLAR |
92152-1525 |
from US $14.23 |
||
|
92153
|
92153
92153-1727 BOLT,FLANGED,8X40 |
92153-1727 |
from US $3.27 |
||
|
92153A
|
92153A
92153-1729 BOLT,FLANGED-SMALL,6X |
92153-1729 |
from US $1.09 |
||
| replacement | |||||
|
92153A
|
92153A
92154-1822 BOLT,FLANGED-SMALL,6X |
92154-1822 |
from US $0.94 |
||
|
92154A
|
92154A
92154-0832 BOLT,DRAIN |
92154-0832 |
from US $1.35 |
||
|
92154B
|
92154B
92154-0833 BOLT,FLANGED,10X40 |
92154-0833 |
from US $1.56 |
||
|
92154C
|
92154C
92154-0834 BOLT,FLANGED,10X40 |
92154-0834 |
from US $1.56 |
||
|
92170
|
92170
92170-2043 CLAMP |
92170-2043 |
from US $1.65 |
||
|
92180
|
92180
92180-0721 SHIM,T=1.3 |
92180-0721 |
from US $4.82 |
||
|
92180A
|
92180A
92180-0722 SHIM,T=1.4 |
92180-0722 |
from US $4.82 |
||
|
92180B
|
92180B
92180-0723 SHIM,T=1.5 |
92180-0723 |
from US $4.82 |
||
|
92180C
|
92180C
92180-0724 SHIM,T=1.6 |
92180-0724 |
from US $4.82 |
||
|
92192
|
92192
92192-1041 TUBE,BREATHER |
92192-1041 |
from US $13.39 |
||
