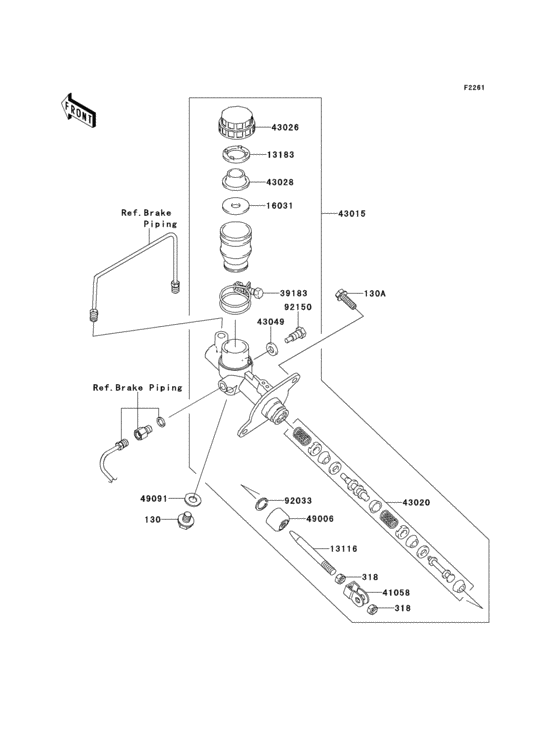

Master cylinder Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- Canada
- Colour
- Camouflage Realtree Apg (Base Black) (16P)
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA1012 BOLT-FLANGED,10X12 |
130AA1012 |
from US $1.24 |
||
|
130A
|
130A
130BA0825 BOLT-FLANGED,8X25 |
130BA0825 |
from US $1.27 |
||
|
318
|
318
318BA0800 NUT-HEX-SMALL,8MM |
318BA0800 |
from US $0.63 |
||
|
13116
|
13116
13116-1134 ROD-PUSH |
13116-1134 |
from US $21.77 |
||
|
13183
|
13183
13183-1306 PLATE |
13183-1306 |
from US $2.95 |
||
|
16031
|
16031
16031-1069 FLOAT |
16031-1069 |
from US $5.28 |
||
|
39183
|
39183
39183-1055 BAND-ASSY |
39183-1055 |
from US $7.62 |
||
|
43015
|
43015
43015-1683 CYLINDER-ASSY-MASTER |
43015-1683 |
from US $279.94 |
||
|
43020
|
43020
43020-1124 PISTON-COMP-BRAKE |
43020-1124 |
from US $59.90 |
||
|
43026
|
43026
43026-1067 CAP-BRAKE |
43026-1067 |
from US $17.42 |
||
|
43028
|
43028
43028-1078 DIAPHRAGM |
43028-1078 |
from US $10.43 |
||
|
43049
|
43049
43049-1065 PACKING |
43049-1065 |
from US $2.49 |
||
|
49006
|
49006
49006-1245 BOOT |
49006-1245 |
from US $5.28 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
92033
|
92033
92033-1255 RING-SNAP |
92033-1255 |
from US $2.33 |
||
|
92150
|
92150
92150-1165 BOLT,STOP |
92150-1165 |
from US $2.33 |
