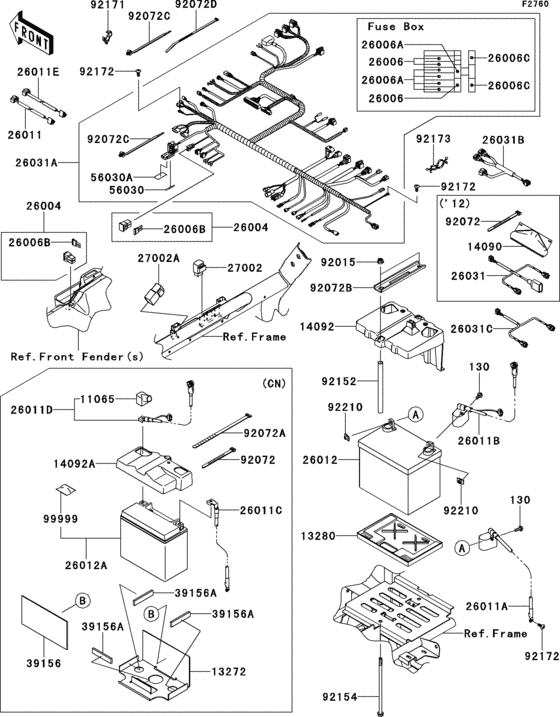

Chassis electrical equipment(1/2) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- USA
- Frame
- JKARTDD1 DB501501 - 999999
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0616 BOLT-FLANGED,6X16 |
130BA0616 |
from US $0.79 |
||
|
26004
|
26004
26004-1093 FUSE-ASSY,40A |
26004-1093 |
from US $3.57 |
||
| replacement | |||||
|
26004
|
26004
26004-0035 FUSE-ASSY,40A |
26004-0035 |
from US $3.46 |
||
|
26006
|
26006
26006-0001 FUSE,MINI BLADE,15A,B |
26006-0001 |
from US $3.48 |
||
|
26006A
|
26006A
26006-1078 FUSE,MINI BLADE,10A,R |
26006-1078 |
from US $3.33 |
||
|
26006B
|
26006B
26006-0014 FUSE,40A |
26006-0014 |
from US $4.90 |
||
|
26006C
|
26006C
26006-1080 FUSE,MINI BLADE,30A,G |
26006-1080 |
from US $3.33 |
||
|
26011
|
26011
26011-0276 WIRE-LEAD,HEAD LAMP,L |
26011-0276 |
US $64.80 |
||
|
26011E
|
26011E
26011-0759 WIRE-LEAD,HEAD LAMP,R |
26011-0759 |
US $56.70 |
||
|
26012
|
26012
26012-0107
BATTERY,12V 14AH
|
26012-0107 |
— | ||
|
27002
|
27002
27002-1062 RELAY-ASSY |
27002-1062 |
from US $34.26 |
||
|
27002A
|
27002A
27002-1086 RELAY-ASSY |
27002-1086 |
from US $29.47 |
||
|
56030
|
56030
56030-0404 LABEL,FUSE BOX,30A |
56030-0404 |
from US $3.57 |
||
|
92015
|
92015
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92072C
|
92072C
92072-1414 BAND |
92072-1414 |
from US $1.74 |
||
|
92072D
|
92072D
92072-3509 BAND |
92072-3509 |
from US $1.74 |
||
|
92171
|
92171
92171-1415 CLAMP,C CRIP,DIA=13 |
92171-1415 |
from US $1.27 |
||
|
92172
|
92172
92172-0739 SCREW,TAPPING,6X16 |
92172-0739 |
from US $0.32 |
||
|
92210
|
92210
92210-1352 NUT,PLATE,6MM |
92210-1352 |
from US $1.43 |
||
