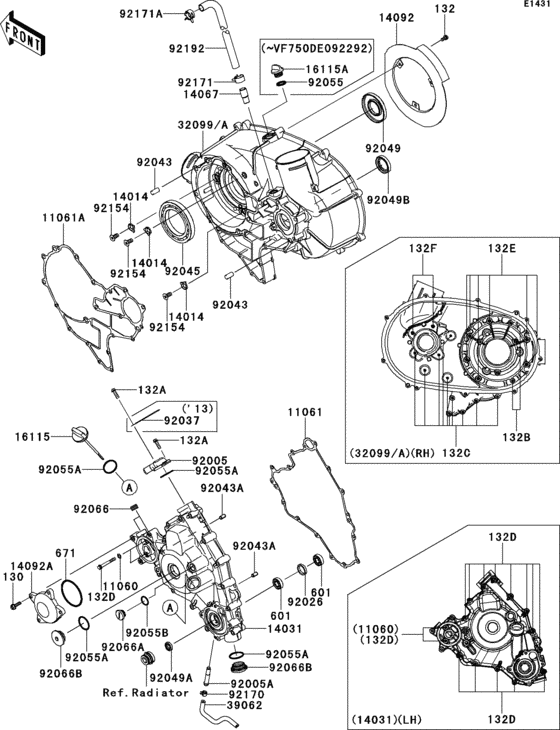

Engine cover(s)(1/2) Diagram Kawasaki KRT750 Teryx4 750 4X4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- USA
- Frame
- JKARTDD1 DB501501 - 999999
- Power
- 45,5 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BD0612 BOLT-FLANGED-SMALL,6X |
132BD0612 |
from US $0.95 |
||
|
132A
|
132A
132BD0620 BOLT-FLANGED-SMALL |
132BD0620 |
from US $1.11 |
||
|
132B
|
132B
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
132C
|
132C
132BD0645 BOLT-FLANGED-SMALL |
132BD0645 |
from US $1.27 |
||
|
132D
|
132D
132BD0650 BOLT-FLANGED-SMALL |
132BD0650 |
from US $1.27 |
||
|
132E
|
132E
132BD0835 BOLT-FLANGED-SMALL |
132BD0835 |
from US $1.27 |
||
|
601
|
601
601A6001 BEARING-BALL |
601A6001 |
from US $9.75 |
||
|
671
|
671
671B2565 0 RING,65MM |
671B2565 |
from US $6.18 |
||
|
11060
|
11060
11060-1994 GASKET,6.2X12X0.3 |
11060-1994 |
from US $1.44 |
||
|
14067
|
14067
14067006 BREATHER JOINT |
14067006 |
from US $15.05 |
||
|
92005A
|
92005A
92005-1264 FITTING |
92005-1264 |
from US $4.75 |
||
|
92037
|
92037
92037-1993 CLAMP |
92037-1993 |
from US $3.33 |
||
|
92043
|
92043
92043-0142 PIN,10X20 |
92043-0142 |
from US $1.71 |
||
|
92043A
|
92043A
92043-1263 PIN,6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92049A
|
92049A
92049-1228 SEAL-OIL,AC037AE0 |
92049-1228 |
from US $6.81 |
||
|
92049B
|
92049B
92049-1575 SEAL-OIL |
92049-1575 |
from US $7.92 |
||
|
92055B
|
92055B
92055-1146 RING-O |
92055-1146 |
from US $6.57 |
||
|
92066
|
92066
92066-0003 PLUG,PT3/8X10 |
92066-0003 |
from US $2.85 |
||
|
92066A
|
92066A
92066-0011 PLUG,COVER |
92066-0011 |
from US $9.35 |
||
|
92170
|
92170
92170-1493 CLAMP |
92170-1493 |
from US $3.17 |
||
|
92171
|
92171
92171-0329 CLAMP |
92171-0329 |
from US $5.39 |
||
|
92171A
|
92171A
92171-1277 CLAMP |
92171-1277 |
from US $1.58 |
