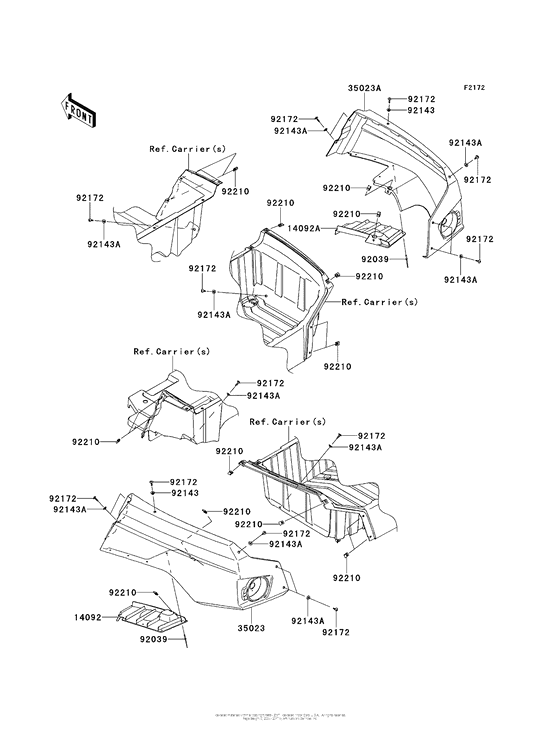

Rear Fender(S) Diagram Kawasaki KRT750 Teryx4 750 4x4 EPS Realtree APG HD
- Model code
- KRT750DDF
- Engine Capacity
- 749
- Year
- 2013
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 750 4X4 EPS Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14092
|
14092
14092-0863 COVER,INNER,LH |
14092-0863 |
from US $31.88 |
||
|
14092A
|
14092A
14092-0864 COVER,INNER,RH |
14092-0864 |
from US $31.88 |
||
|
35023
|
35023
35023-0322-16P FENDER-REAR,LH,CAMOUF |
35023-0322-16P |
from US $135.14 |
||
|
35023A
|
35023A
35023-0323-16P FENDER-REAR,RH,CAMOUF |
35023-0323-16P |
from US $132.46 |
||
|
92039
|
92039
92039-0769 RIVET,5X23.3 |
92039-0769 |
from US $1.56 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92143A
|
92143A
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92172
|
92172
92172-0488 SCREW,TAPPING,6X20 |
92172-0488 |
from US $1.27 |
||
|
92210
|
92210
92210-0624 NUT,LEAF SPRING,6MM |
92210-0624 |
from US $0.94 |
