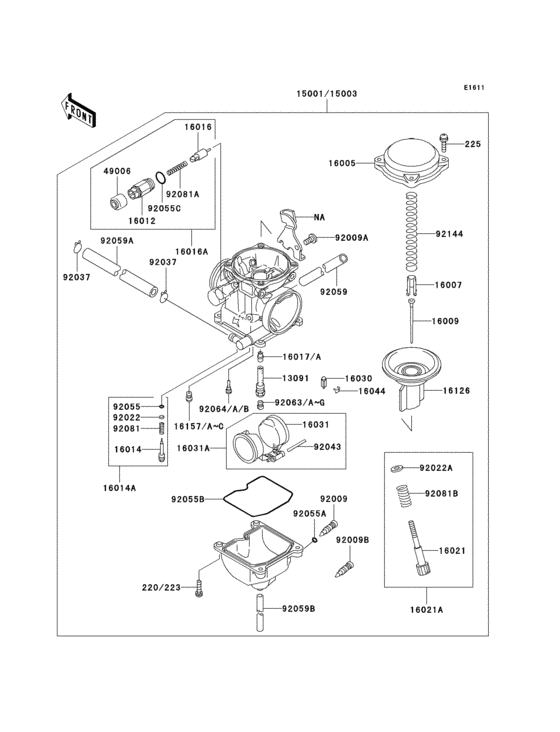

Carburetor(1/3)(ksf250-a15/a16) Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A15
- Engine Capacity
- 245
- Year
- 2001
- Sales region
- USA
- Colour
- Lime Green (7F)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220D0414 SCREW-PAN-CROS |
220D0414 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0414 SCREW-PAN-CROS |
220AA0414 |
from US $1.07 |
||
|
225
|
225
225C0418
SCREW-PAN-WSP-CROS
|
225C0418 |
— | ||
| replacement | |||||
|
225
|
225
225AB0418 SCREW-PAN-WSP-CROS |
225AB0418 |
from US $0.95 |
||
|
13091
|
13091
13091-1259 HOLDER,NEEDLE JET |
13091-1259 |
from US $22.14 |
||
|
15003
|
15003
15003-1372 CARBURETOR-ASSY |
15003-1372 |
US $648.65 |
||
| replacement | |||||
|
15003
|
15003
15003-1748
CARBURETOR-ASSY
|
15003-1748 |
— | ||
|
16005
|
16005
16005-1057 TOP-CHAMBER,MIXING,27/60 |
16005-1057 |
from US $32.31 |
||
|
16007
|
16007
16007-1134 SEAT-SPRING,VALVE |
16007-1134 |
from US $27.53 |
||
|
16009
|
16009
16009-1333 NEEDLE-JET,N54C |
16009-1333 |
from US $23.79 |
||
|
16014A
|
16014A
16014-1080 SCREW-PILOT AIR |
16014-1080 |
from US $15.68 |
||
|
16016A
|
16016A
16016-1101 PLUNGER |
16016-1101 |
from US $38.56 |
||
|
16017A
|
16017A
16017-1393 JET-NEEDLE,#6 |
16017-1393 |
from US $31.10 |
||
|
16021A
|
16021A
16021-1201 SCREW-THROTTLE STOP |
16021-1201 |
from US $33.96 |
||
|
16030
|
16030
16030-1007 FLOAT VALVE |
16030-1007 |
from US $41.28 |
||
|
16031A
|
16031A
16031-1077 FLOAT |
16031-1077 |
from US $36.20 |
||
|
16044
|
16044
16044-007 CLIP,FLOAT VALVE |
16044-007 |
from US $6.18 |
||
|
16126
|
16126
16126-1180 VALVE,VACUUM |
16126-1180 |
from US $144.17 |
||
|
16157
|
16157
16157-1056 JET-STARTER,#55 |
16157-1056 |
from US $10.43 |
||
|
16157A
|
16157A
16157-1057 JET-STARTER,#58 |
16157-1057 |
from US $17.86 |
||
|
16157C
|
16157C
16157-1058 JET-STARTER,#60 |
16157-1058 |
US $10.43 |
||
|
92009B
|
92009B
92009-1551 SCREW,DRAIN |
92009-1551 |
from US $6.34 |
||
|
92037
|
92037
92037-1531 CLAMP,TUBE |
92037-1531 |
from US $3.33 |
||
|
92055B
|
92055B
92055-1222 RING-O,FLOAT CHAMBER |
92055-1222 |
from US $11.40 |
||
|
92059
|
92059
92059-1465 TUBE,6.5X9.5X500 |
92059-1465 |
from US $20.50 |
||
|
92059A
|
92059A
92059-1751 TUBE,6.5X11.5X360 |
92059-1751 |
US $56.97 |
||
|
92059B
|
92059B
92059-1752 TUBE,3.5X6.5X300 |
92059-1752 |
US $16.65 |
||
| replacement | |||||
|
92059B
|
92059B
92059-1748 TUBE,3.5X6.5X420 |
92059-1748 |
from US $13.22 |
||
|
92063
|
92063
92063-1013 MAIN JET,#140 |
92063-1013 |
from US $8.71 |
||
|
92063A
|
92063A
92063-1014 MAIN JET,#135 |
92063-1014 |
from US $10.45 |
||
|
92063B
|
92063B
92063-1015 MAIN JET,#138 |
92063-1015 |
from US $8.71 |
||
|
92063C
|
92063C
92063-1016 MAIN JET,#142 |
92063-1016 |
from US $8.67 |
||
|
92063D
|
92063D
92063-1017 MAIN JET,#145 |
92063-1017 |
from US $8.71 |
||
|
92064
|
92064
92064-1050 JET-PILOT,#38 |
92064-1050 |
from US $12.51 |
||
|
92064A
|
92064A
92064-1101 JET-PILOT,#35 |
92064-1101 |
from US $10.45 |
||
|
92064B
|
92064B
92064-1117
JET-PILOT,#32
|
92064-1117 |
— | ||
|
92144
|
92144
92144-1066 SPRING,VACUUM VALVE |
92144-1066 |
from US $7.93 |
||
