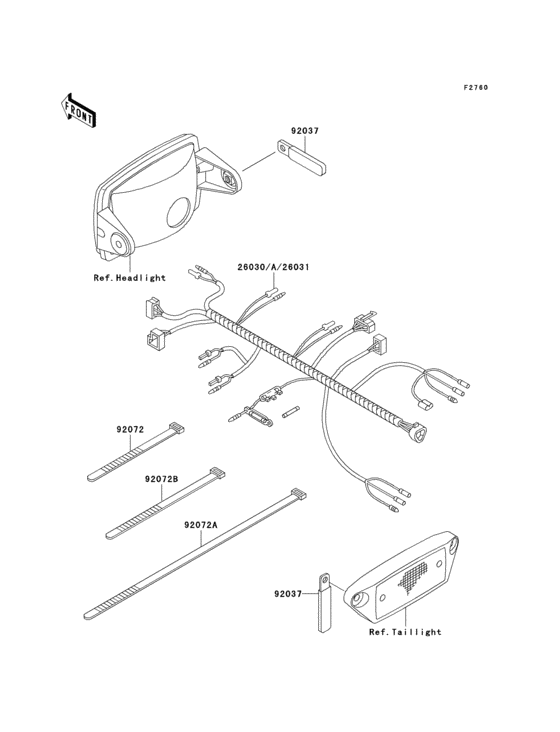

Chassis electrical equipment Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A15
- Engine Capacity
- 245
- Year
- 2001
- Sales region
- USA
- Colour
- Lime Green (7F)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26030
|
26030
26030-1065 HARNESS,MAIN |
26030-1065 |
US $118.46 |
||
|
92037
|
92037
92037-1069
CLAMP
|
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMP |
92171-0652 |
from US $1.27 |
||
|
92072
|
92072
92072-031 BAND,MIDDLE |
92072-031 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1197 BAND |
92072-1197 |
from US $5.07 |
||
|
92072B
|
92072B
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
