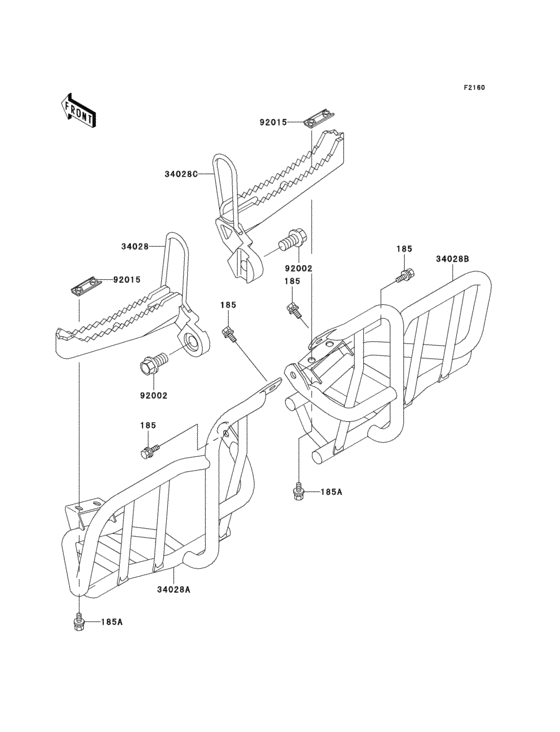

Footrests Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A15
- Engine Capacity
- 245
- Year
- 2001
- Sales region
- USA
- Colour
- Lime Green (7F)
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
185
|
185
185J0818
BOLT-UPSET-WSP-SMALL
|
185J0818 |
— | ||
| replacement | |||||
|
185
|
185
185BB0818 BOLT-UPSET-WSP-SMALL |
185BB0818 |
US $1.24 |
||
|
185A
|
185A
185J0820 BOLT-UPSET-WSP-SMALL, |
185J0820 |
US $4.12 |
||
| replacement | |||||
|
185A
|
185A
185BB0820 BOLT-UPSET-WSP-SMALL, |
185BB0820 |
from US $1.24 |
||
|
34028
|
34028
34028-1366-CQ STEP,LH,P.C.GRAY |
34028-1366-CQ |
US $23.72 |
||
|
34028A
|
34028A
34028-1397-CQ
STEP,FOOT BOARD,LH,P.
|
34028-1397-CQ |
— | ||
|
34028B
|
34028B
34028-1398-CQ
STEP,FOOT BOARD,RH,P.
|
34028-1398-CQ |
— | ||
|
34028C
|
34028C
34028-1509-CQ STEP,RH,P.C.GRAY |
34028-1509-CQ |
US $21.46 |
||
|
92002
|
92002
92002-1767 BOLT,FLANGED,14X25 |
92002-1767 |
from US $6.68 |
||
|
92015
|
92015
92015-1732 NUT |
92015-1732 |
from US $6.68 |
||
