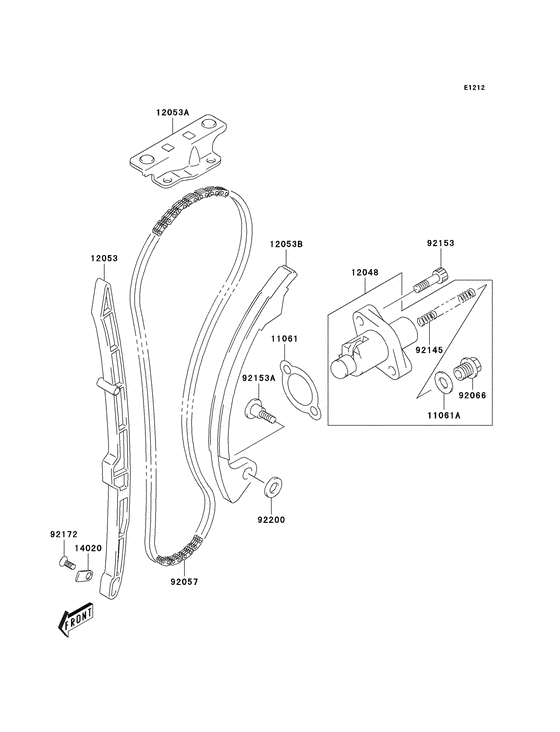

Cam chain/tensioner Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S073 GASKET,TENSIONER ADJUGasket,tensioner adjuster; |
11061-S073 |
US $5.90 |
||
|
11061A
|
11061A
11061-S074 GASKET |
11061-S074 |
US $7.82 |
||
|
12048
|
12048
12048-S004 TENSIONER-ASSY |
12048-S004 |
US $122.29 |
||
|
12053
|
12053
12053-S014 GUIDE-CHAINGuide-chain,fr; |
12053-S014 |
US $42.47 |
||
|
12053A
|
12053A
12053-S015 GUIDE-CHAINGuide-chain,cnt; |
12053-S015 |
US $41 |
||
|
12053B
|
12053B
12053-S016 GUIDE-CHAIN |
12053-S016 |
US $52.83 |
||
| replacement | |||||
|
12053B
|
12053B
12053-S031 Guide-Chain |
12053-S031 |
US $60.03 |
||
|
14020
|
14020
14020-S006 RETAINER |
14020-S006 |
US $5.54 |
||
|
92057
|
92057
92057-S016 CHAIN,CAMSHAFT DRIVEChain,camshaft drive; |
92057-S016 |
US $78.66 |
||
|
92066
|
92066
92066-S034 PLUG |
92066-S034 |
US $18.51 |
||
|
92145
|
92145
92145-S155 SPRING,STARTER IDLE GSpring,starter idle gear; |
92145-S155 |
US $8.99 |
||
|
92153
|
92153
92153-S257 BOLT,TENSIONER ADJUSTBolt,tensioner adjuster; |
92153-S257 |
US $1.69 |
||
| replacement | |||||
|
92153
|
92153
92153-S576 BOLT,TENSIONER ADJUSTBolt,tensioner adjuster; |
92153-S576 |
US $3.03 |
||
|
92153A
|
92153A
92153-S291 BOLT,CAM CHAIN TENSIOBolt,cam chain tensioner; |
92153-S291 |
US $8.19 |
||
|
92172
|
92172
92172-S112 SCREW |
92172-S112 |
US $3.37 |
||
|
92200
|
92200
92200-S128 WASHER,CAM CHAINWasher,cam chain; |
92200-S128 |
US $2.09 |
||
