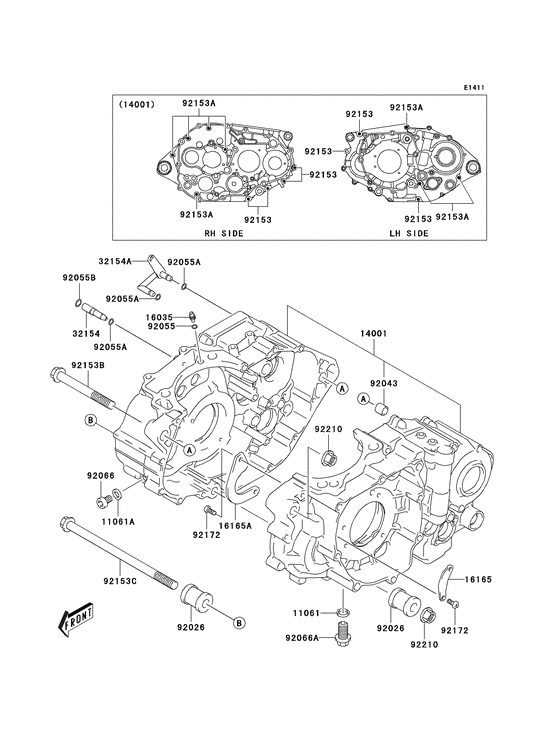

Crankcase Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S005 GASKET,12.1X16.2X3.7Gasket,12x16x2; |
11061-S005 |
from US $1.43 |
||
|
11061A
|
11061A
11061-S021 GASKET,10X14X3.6Gasket,10x14x3.6; |
11061-S021 |
from US $2.38 |
||
|
14001
|
14001
14001-S012 SET-CRANKCASE |
14001-S012 |
US $830.38 |
||
| replacement | |||||
|
14001
|
14001
14001-S016 SET-CRANKCASE |
14001-S016 |
US $1,013.48 |
||
|
16035
|
16035
16035-S003 JET-AIR |
16035-S003 |
US $12.58 |
||
|
16165
|
16165
16165-S007 SEPARATOR,CRANKCASE OSeparator,crankcase oil; |
16165-S007 |
US $2.32 |
||
|
16165A
|
16165A
16165-S008 SEPARATOR,CRANKCASE OSeparator,crankcase oil; |
16165-S008 |
US $3.80 |
||
|
32154
|
32154
32154-S005 Pipe |
32154-S005 |
US $16.70 |
||
|
32154A
|
32154A
32154-S006 Pipe |
32154-S006 |
US $27.62 |
||
|
92026
|
92026
92026-S107 SPACER |
92026-S107 |
US $15.56 |
||
|
92043
|
92043
92043-S003 PIN |
92043-S003 |
from US $1.90 |
||
|
92055
|
92055
92055-S002 RING-O,ID:4.0Ring-o,id=4.0; |
92055-S002 |
from US $2.53 |
||
|
92055A
|
92055A
92055-S003 RING-O,ID:4.8Ring-o,id:4.8; |
92055-S003 |
from US $2.53 |
||
|
92055B
|
92055B
92055-S053 RING-O,6.8X1.9Ring-o,6.8x1.9; |
92055-S053 |
US $2.26 |
||
|
92066
|
92066
92066-S009 PLUG |
92066-S009 |
from US $3.01 |
||
|
92066A
|
92066A
92066-S032 Plug,Oil DrainPlug,oil drain; |
92066-S032 |
US $3.24 |
||
| replacement | |||||
|
92066A
|
92066A
92066-S053 Plug,Oil DrainPlug,oil drain; |
92066-S053 |
US $5.81 |
||
|
92153
|
92153
92153-S128 BOLT |
92153-S128 |
US $1.55 |
||
| replacement | |||||
|
92153
|
92153
92153-S561 BOLT |
92153-S561 |
US $3.03 |
||
|
92153A
|
92153A
92153-S247 BOLT |
92153-S247 |
US $1.84 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S583 BOLT |
92153-S583 |
US $3.37 |
||
|
92153B
|
92153B
92153-S269 BOLT,10X100Bolt,10x100; |
92153-S269 |
US $6.30 |
||
|
92153C
|
92153C
92153-S270 BOLT,10X180Bolt,10x180; |
92153-S270 |
US $7.85 |
||
|
92172
|
92172
92172-S033 SCREW,6X12 |
92172-S033 |
from US $1.76 |
||
|
92210
|
92210
92210-S015 NUT |
92210-S015 |
from US $3.64 |
||
| replacement | |||||
|
92210
|
92210
92210-S186 NUT |
92210-S186 |
US $7.33 |
||
