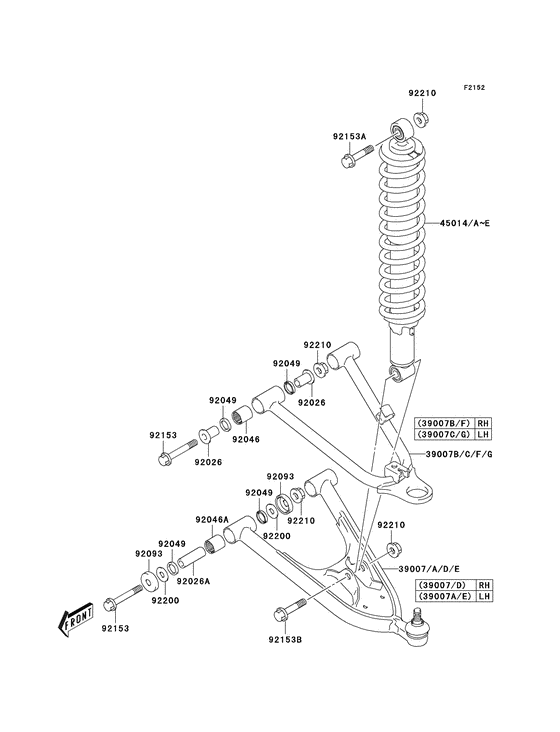

Front suspension Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39007
|
39007
39007-S007-514 ARM-SUSP,S.SILVERArm-susp,lwr,rh,s.silver; |
39007-S007-514 |
US $314.42 |
||
|
39007A
|
39007A
39007-S008-514 ARM-SUSP,S.SILVERArm-susp,lwr,lh,s.silver; |
39007-S008-514 |
US $314.42 |
||
|
39007B
|
39007B
39007-S009-514 ARM-SUSP,S.SILVERArm-susp,upp,rh,s.silver; |
39007-S009-514 |
US $147.10 |
||
|
39007C
|
39007C
39007-S010-514 ARM-SUSP,S.SILVERArm-susp,upp,lh,s.silver; |
39007-S010-514 |
US $147.10 |
||
|
45014
|
45014
45014-S017-535 SHOCK ABSORBER,L.GREENShockabsorber,l.green; |
45014-S017-535 |
US $419.02 |
||
|
92026
|
92026
92026-S095 SPACER |
92026-S095 |
US $26.52 |
||
|
92026A
|
92026A
92026-S096 SPACER |
92026-S096 |
US $21.23 |
||
|
92046
|
92046
92046-S003 BEARING-NEEDLEBearing-needle,17x24x26; |
92046-S003 |
from US $17.27 |
||
| replacement | |||||
|
92046
|
92046
92046-S029 Bearing-Needle,17X24XBearing-needle,17x24x26; |
92046-S029 |
US $38.44 |
||
|
92046A
|
92046A
92046-S016 BEARING-NEEDLE,SUSPENBearing-needle,suspension arm; |
92046-S016 |
US $27.86 |
||
|
92049
|
92049
92049-S024 SEAL-OIL,RR CUSHION RSeal-oil,rear cushion rod; |
92049-S024 |
US $3.40 |
||
| replacement | |||||
|
92049
|
92049
92049-S076 Seal-Oil,rear CushionSeal-oil,rear cushion rod; |
92049-S076 |
US $3.40 |
||
|
92093
|
92093
92093-S039 SEAL |
92093-S039 |
US $7.94 |
||
| replacement | |||||
|
92093
|
92093
92093-S060 Seal |
92093-S060 |
US $10.46 |
||
|
92153
|
92153
92153-S267 BOLT,SUSPENSION ARMBolt,suspension arm; |
92153-S267 |
US $92.70 |
||
|
92153A
|
92153A
92153-S275 BOLT,SHOCK ABSORBER,1Bolt,shock absorber,10x38; |
92153-S275 |
US $4.41 |
||
|
92153B
|
92153B
92153-S276 BOLT,SHOCK ABSORBER,1Bolt,shock absorber,10x48; |
92153-S276 |
US $4.41 |
||
|
92200
|
92200
92200-S130 WASHER,SUSPENSION ARMWasher,suspension arm; |
92200-S130 |
US $31.80 |
||
|
92210
|
92210
92210-S015 NUT |
92210-S015 |
from US $3.64 |
||
| replacement | |||||
|
92210
|
92210
92210-S186 NUT |
92210-S186 |
US $7.33 |
||
