	Description	OEM Part #	Price
13107	13107 13107-S006 SHAFT,REVERSE LOCK Shaft,reverse lock;	13107-S006	US $75.72
13140	13140 13140-S008 FORK-SHIFT	13140-S008	US $75.92
13140A	13140A 13140-S009 FORK-SHIFT	13140-S009	US $60.21
13140B	13140B 13140-S010 FORK-SHIFT	13140-S010	US $75.92
13141	13141 13141-S005 DRUM-CHANGE	13141-S005	US $143.17
13145	13145 13145-S004 CAM-CHANGE DRUM	13145-S004	US $48.78
13151	13151 13151-S002 SWITCH-COMP	13151-S002	US $145.06
13161	13161 13161-S004 LEVER-COMP-CHANGE SHA	13161-S004	US $66.18
13165	13165 13165-S003 PAWL	13165-S003	US $6.88
13165A	13165A 13165-S004 PAWL	13165-S004	US $6.88
13236	13236 13236-S005 LEVER-COMP,GEAR SHIFT Lever-comp,gear shift;	13236-S005	US $12.72
13242	13242 13242-S006 LEVER-ASSY-CHANGE	13242-S006	US $45.86
	replacement
13242	13242 13242-S013 Lever-Assy-Change	13242-S013	US $195.81
13271	13271 13271-S046 PLATE	13271-S046	US $46.17
14014	14014 14014-S004 PLATE-POSITION	14014-S004	US $17.57
14020	14020 14020-S008 RETAINER	14020-S008	US $2.48
49047	49047 49047-S004 ROD-SHIFT	49047-S004	US $17.28
92026	92026 92026-S087 SPACER,GEAR SHIFT CAM Spacer,gear shift cam;	92026-S087	US $6.41
92026A	92026A 92026-S089 SPACER	92026-S089	US $6.32
92033	92033 92033-S037 RING-SNAP	92033-S037	US $1.46
	replacement
92033	92033 92033-S082 RING-SNAP	92033-S082	US $2.92
92043	92043 92043-S035 PIN,CAM STOPPER PLATE Pin,cam stopper plate;	92043-S035	US $0.95
92043A	92043A 92043-S038 PIN,GEAR SHIFT Pin,gear shift;	92043-S038	US $3.04
92043B	92043B 92043-S041 PIN,SHIFT CAM Pin,shift cam;	92043-S041	US $10.15
92045	92045 92045-S047 BEARING-BALL,GEAR SHI Bearing-ball,gear shift;	92045-S047	US $35.97
92046	92046 92046-S008 BEARING-NEEDLE Bearing-needle,14x20x12;	92046-S008	US $19.13
92046A	92046A 92046-S020 BEARING-NEEDLE,GEAR S Bearing-needle,gear shift cam;	92046-S020	US $20.02
92049	92049 92049-S049 SEAL-OIL,REVERSE LOCK Seal-oil,reverse lock shaft;	92049-S049	US $8.65
92049A	92049A 92049-S050 SEAL-OIL,GEAR SHIFT Seal-oil,gear shift;	92049-S050	US $9.50
92055	92055 92055-S055 RING-O,26.2X2.4 Ring-o,26.2x2.4;	92055-S055	US $3.54
92122	92122 92122-S005 ROLLER,5X8 Roller,5x8;	92122-S005	US $2.45
92145	92145 92145-S037 SPRING	92145-S037	US $2.45
92145A	92145A 92145-S089 SPRING	92145-S089	US $2.26
92145B	92145B 92145-S094 SPRING	92145-S094	US $9.66
92145C	92145C 92145-S101 SPRING,REVERSE LOCK Spring,reverse lock;	92145-S101	US $5.90
92145D	92145D 92145-S102 SPRING	92145-S102	US $3.67
92153	92153 92153-S013 BOLT	92153-S013	from US $1.27
	replacement
92153	92153 92153-S503 BOLT	92153-S503	from US $0.94
92153A	92153A 92153-S252 BOLT	92153-S252	US $1.44
	replacement
92153A	92153A 92153-S593 BOLT	92153-S593	US $1.39
92153B	92153B 92153-S285 BOLT Bolt,6x14.3;	92153-S285	US $2.23
92153C	92153C 92153-S292 BOLT	92153-S292	US $4
92161	92161 92161-S093 DAMPER,PEDAL Damper,pedal;	92161-S093	US $4.77
	replacement
92161	92161 92161-S225 Damper,Pedal Damper,pedal;	92161-S225	US $8.18
92172A	92172A 92172-S112 SCREW	92172-S112	US $3.37
92172B	92172B 92172-S170 SCREW	92172-S170	US $1.78
92180	92180 92180-S045 SHIM,GEAR SHIFT Shim,gear shift;	92180-S045	US $3.88
92200	92200 92200-S086 WASHER,14X29X1.50 Washer,14x29x1.50;	92200-S086	US $2.95
	replacement
92200	92200 92200-S294 WASHER,14X29X1.50 Washer,14x29x1.50;	92200-S294	US $5.93
92200A	92200A 92200-S127 WASHER	92200-S127	US $1.37

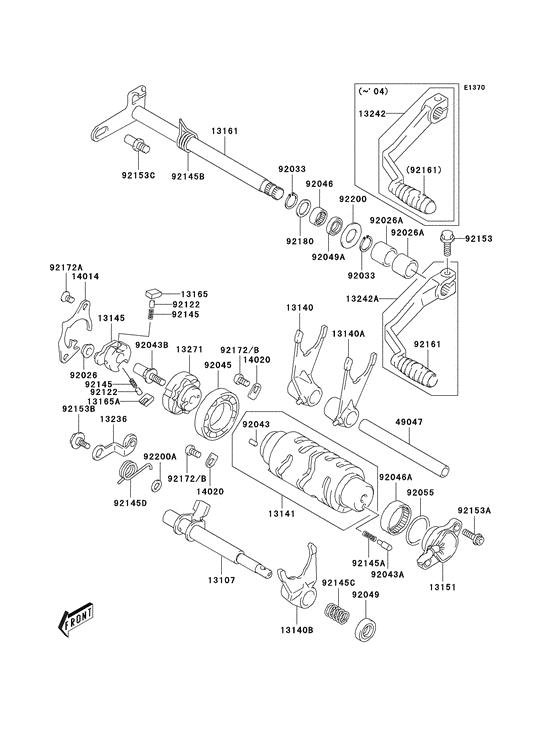

Gear change mechanism Diagram Kawasaki KSF400 KFX 400 USA 10397305-683581

Gear change mechanism Diagram Kawasaki KSF400 KFX 400 USA 10397305-683581
