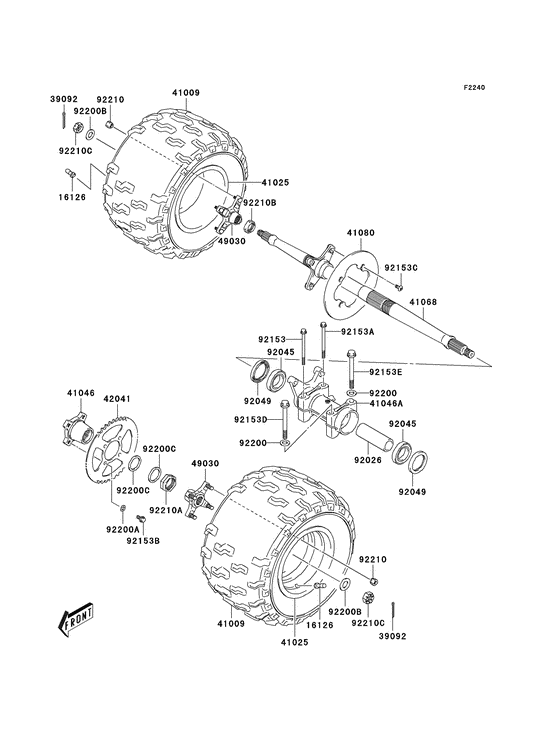

Rear hub (A1) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-S002 VALVE,WHEEL RIM,TR412Valve,wheel rim,tr412; |
16126-S002 |
from US $5.86 |
||
|
39092
|
39092
39092-S010 PIN-HAIR,REAR HUBPin-hair,rear hub; |
39092-S010 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S019 PIN-HAIR,REAR HUBPin-hair,rear hub; |
39092-S019 |
US $2.48 |
||
|
41009
|
41009
41009-S013 TIRE,RRTire,rr; |
41009-S013 |
US $221.81 |
||
|
41025
|
41025
41025-S009 RIM,REAR WHEELRim,rear wheel,9x8.0at; |
41025-S009 |
US $400.21 |
||
|
41046
|
41046
41046-S004 Housing-bearing |
41046-S004 |
US $115.79 |
||
| replacement | |||||
|
41046
|
41046
41046-S009 HOUSING-BEARING |
41046-S009 |
US $177.91 |
||
|
41046A
|
41046A
41046-S005 HOUSING-BEARING |
41046-S005 |
US $186.48 |
||
| replacement | |||||
|
41046A
|
41046A
41046-S010 HOUSING-BEARING |
41046-S010 |
US $216.33 |
||
|
41068
|
41068
41068-S011 AXLE,RRAxle,rr; |
41068-S011 |
US $585.54 |
||
|
41080
|
41080
41080-S006 DISC,REAR BRAKEDisc,rear brake; |
41080-S006 |
US $219.64 |
||
|
42041
|
42041
42041-S006 SPROCKET-HUB |
42041-S006 |
US $60.28 |
||
| replacement | |||||
|
42041
|
42041
42041-S011 SPROCKET-HUB |
42041-S011 |
US $73 |
||
|
49030
|
49030
49030-S004-563 HUB,RR,F.GRAYHub,rr,f.gray; |
49030-S004-563 |
US $216.89 |
||
|
92026
|
92026
92026-S106 SPACER,REAR AXLESpacer,rear axle; |
92026-S106 |
US $56.41 |
||
|
92045
|
92045
92045-S049 BEARING-BALL,REAR AXLBearing-ball,rear axle; |
92045-S049 |
US $52.17 |
||
|
92049
|
92049
92049-S052 SEAL-OIL,AXLESeal-oil,axle; |
92049-S052 |
US $22.66 |
||
|
92153
|
92153
92153-S268 BOLT,REAR AXLEBolt,rear axle; |
92153-S268 |
US $9.93 |
||
|
92153A
|
92153A
92153-S274 BOLT,REAR AXLEBolt,rear axle; |
92153-S274 |
US $9.11 |
||
|
92153B
|
92153B
92153-S277 BOLT,REAR SPROCKETBolt,rear sprocket; |
92153-S277 |
US $6.46 |
||
|
92153C
|
92153C
92153-S283 BOLT,FRONT BRAKE DISC |
92153-S283 |
from US $2.38 |
||
|
92153D
|
92153D
92153-S368 BOLT,REAR AXLEBolt,rear axle; |
92153-S368 |
US $10.73 |
||
|
92153E
|
92153E
92153-S369 BOLT,REAR AXLEBolt,rear axle; |
92153-S369 |
US $12.41 |
||
|
92200
|
92200
92200-S138 WASHER,12.5X26X2.3Washer,axle; |
92200-S138 |
US $2.23 |
||
| replacement | |||||
|
92200
|
92200
92200-S070 WASHER,12.5X26X2.3Washer,axle; |
92200-S070 |
US $4.23 |
||
|
92200A
|
92200A
92200-S139 WASHER,REAR SPROCKETWasher,rear sprocket; |
92200-S139 |
US $5.90 |
||
|
92200B
|
92200B
92200-S141 WASHER,REAR HUBWasher,rear hub; |
92200-S141 |
US $5.49 |
||
|
92200C
|
92200C
92200-S143 WASHER,REAR AXLEWasher,rear axle; |
92200-S143 |
US $8.18 |
||
|
92210
|
92210
92210-S100 NUT,WHEELNut,wheel; |
92210-S100 |
US $3.18 |
||
|
92210A
|
92210A
92210-S109 NUT,REAR AXLENut,rear axle; |
92210-S109 |
US $44.39 |
||
|
92210B
|
92210B
92210-S110 NUT,REAR AXLENut,rear axle; |
92210-S110 |
US $22.90 |
||
|
92210C
|
92210C
92210-S113 NUT,REAR HUBNut,rear hub; |
92210-S113 |
US $7.91 |
||
