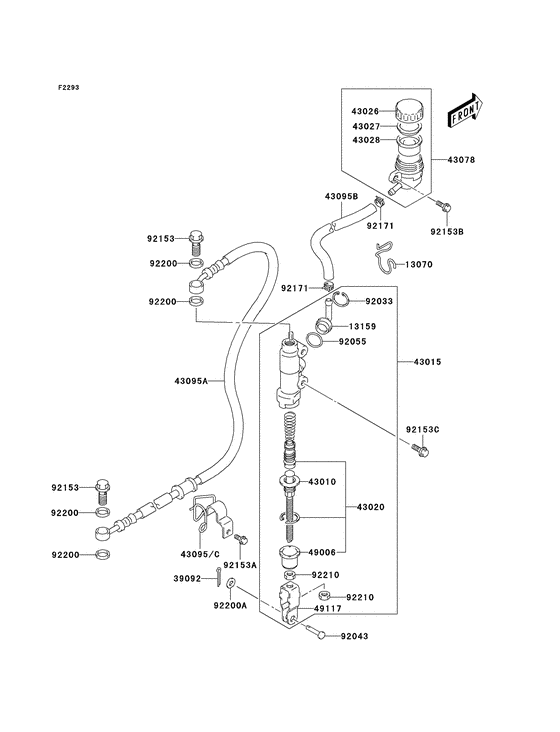

Rear master cylinder Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13070
|
13070
13070-S013 GUIDE |
13070-S013 |
US $8.89 |
||
|
13159
|
13159
13159-S002 CONNECTOR |
13159-S002 |
US $6.55 |
||
|
39092
|
39092
39092-S004 PIN-HAIRPin-hair,fr footrest cotter; |
39092-S004 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S020 PIN-HAIRPin-hair,fr footrest cotter; |
39092-S020 |
US $2.48 |
||
|
43010
|
43010
43010-S001 ROD-ASSY-BRAKE |
43010-S001 |
US $27.04 |
||
|
43015
|
43015
43015-S009 CYLINDER-ASSY-MASTER,Cylinder-assy-master,rr; |
43015-S009 |
US $259.61 |
||
|
43020
|
43020
43020-S005 PISTON-COMP-BRAKE |
43020-S005 |
US $37.87 |
||
|
43026
|
43026
43026-S005 CAP-BRAKE |
43026-S005 |
US $17.28 |
||
|
43027
|
43027
43027-S003 PLATE-DIAPHRAGM |
43027-S003 |
US $6.59 |
||
|
43028
|
43028
43028-S010 DIAPHRAGM |
43028-S010 |
US $14.35 |
||
|
43078
|
43078
43078-S005 RESERVOIR |
43078-S005 |
US $59.38 |
||
|
43095
|
43095
43095-S009 HOSE-BRAKEClamp,hose-brake; |
43095-S009 |
US $10.19 |
||
| replacement | |||||
|
43095
|
43095
43095-S026 HOSE-BRAKEClamp,hose-brake; |
43095-S026 |
US $10.13 |
||
|
43095A
|
43095A
43095-S010 HOSE-BRAKE |
43095-S010 |
US $79.81 |
||
| replacement | |||||
|
43095A
|
43095A
43095-S031 HOSE-BRAKE |
43095-S031 |
US $79.81 |
||
|
43095B
|
43095B
43095-S011 HOSE-BRAKE |
43095-S011 |
US $39.62 |
||
|
49006
|
49006
49006-S026 BOOT |
49006-S026 |
US $4.95 |
||
|
49117
|
49117
49117-S002 YOKE |
49117-S002 |
US $20.09 |
||
|
92033
|
92033
92033-S042 RING-SNAP |
92033-S042 |
US $3.62 |
||
|
92043
|
92043
92043-S036 PIN,REAR MASTER CYLINPin,rear master cylinder; |
92043-S036 |
US $5.08 |
||
|
92055
|
92055
92055-S071 RING-O |
92055-S071 |
US $2.59 |
||
|
92153
|
92153
92153-S053 BOLT |
92153-S053 |
from US $5.23 |
||
| replacement | |||||
|
92153
|
92153
92153-S580 BOLT |
92153-S580 |
from US $4.98 |
||
|
92153A
|
92153A
92153-S143 BOLT |
92153-S143 |
US $1.37 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S553 BOLT |
92153-S553 |
US $2.48 |
||
|
92153B
|
92153B
92153-S144 BOLT |
92153-S144 |
US $1.37 |
||
| replacement | |||||
|
92153B
|
92153B
92153-S578 BOLT |
92153-S578 |
US $2.48 |
||
|
92153C
|
92153C
92153-S260 BOLT,REAR MASTER CYLIBolt,rear master cylinder; |
92153-S260 |
US $2.59 |
||
|
92171
|
92171
92171-S086 CLAMP |
92171-S086 |
US $1.94 |
||
|
92200
|
92200
92200-S014 WASHER,10X15X1.5Washer,10x15x1.5; |
92200-S014 |
from US $1.74 |
||
|
92200A
|
92200A
92200-S135 WASHERWasher,rear master cylinder; |
92200-S135 |
US $1.96 |
||
| replacement | |||||
|
92200A
|
92200A
92200-S295 WASHERWasher,rear master cylinder; |
92200-S295 |
US $3.76 |
||
|
92210
|
92210
92210-S112 NUT |
92210-S112 |
US $1.39 |
||
