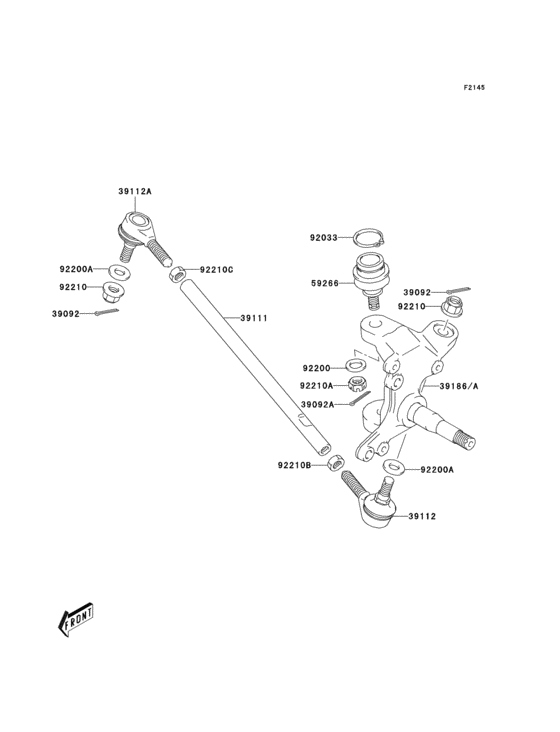

Knuckle arm Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39092
|
39092
39092-S005 PIN-HAIR,COTTER |
39092-S005 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S014 PIN-HAIR,COTTER |
39092-S014 |
US $2.48 |
||
|
39092A
|
39092A
39092-S011 PIN-HAIR |
39092-S011 |
US $1.21 |
||
| replacement | |||||
|
39092A
|
39092A
39092-S015 PIN-HAIR |
39092-S015 |
US $1.21 |
||
|
39111
|
39111
39111-S004 ROD-TIE |
39111-S004 |
US $19.58 |
||
|
39112
|
39112
39112-S007 RODEND-TIE,RH |
39112-S007 |
US $60.59 |
||
|
39112A
|
39112A
39112-S008 RODEND-TIE,LH |
39112-S008 |
US $60.59 |
||
|
39186
|
39186
39186-S005 KNUCKLE,RH |
39186-S005 |
US $251.96 |
||
| replacement | |||||
|
39186
|
39186
39186-S009 KNUCKLE,RH |
39186-S009 |
US $251.96 |
||
|
39186A
|
39186A
39186-S006 KNUCKLE,LH |
39186-S006 |
US $251.96 |
||
| replacement | |||||
|
39186A
|
39186A
39186-S010 KNUCKLE,LH |
39186-S010 |
US $251.96 |
||
|
59266
|
59266
59266-S001 JOINT-BALL |
59266-S001 |
US $68.64 |
||
|
92033
|
92033
92033-S038 Ring-snap |
92033-S038 |
US $2.14 |
||
| replacement | |||||
|
92033
|
92033
92033-S091 RING-SNAP |
92033-S091 |
from US $1.71 |
||
|
92200
|
92200
92200-S029 WASHER |
92200-S029 |
from US $1.27 |
||
| replacement | |||||
|
92200
|
92200
92200-S311 WASHER |
92200-S311 |
from US $0.94 |
||
|
92200A
|
92200A
92200-S149 WASHER |
92200-S149 |
US $3.58 |
||
|
92210
|
92210
92210-S015 NUT |
92210-S015 |
from US $3.64 |
||
| replacement | |||||
|
92210
|
92210
92210-S186 NUT |
92210-S186 |
US $7.33 |
||
|
92210A
|
92210A
92210-S064 NUT |
92210-S064 |
US $1.75 |
||
| replacement | |||||
|
92210A
|
92210A
92210-S185 NUT |
92210-S185 |
US $3.37 |
||
|
92210B
|
92210B
92210-S072 NUT,TIE-ROD |
92210-S072 |
US $2.19 |
||
|
92210C
|
92210C
92210-S073 NUT |
92210-S073 |
US $1.55 |
||
| replacement | |||||
|
92210C
|
92210C
92210-S216 NUT |
92210-S216 |
US $3.03 |
||
