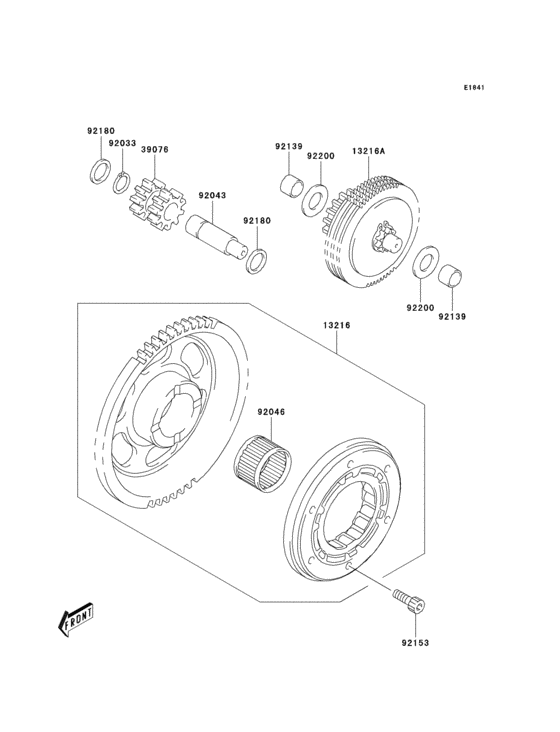

Starter clutch Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A1
- Engine Capacity
- 398
- Year
- 2003
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13216
|
13216
13216-S010 GEAR-COMP,STARTER |
13216-S010 |
US $306.58 |
||
|
13216A
|
13216A
13216-S011 GEAR-COMP,STARTER IDL |
13216-S011 |
US $251.26 |
||
|
39076
|
39076
39076-S004 LIMITER |
39076-S004 |
US $44.69 |
||
|
92033
|
92033
92033-S023 RING-SNAP |
92033-S023 |
US $1.55 |
||
| replacement | |||||
|
92033
|
92033
92033-S081 RING-SNAP |
92033-S081 |
US $3.03 |
||
|
92043
|
92043
92043-S040 PIN,STARTER IDLE GEAR |
92043-S040 |
US $15.68 |
||
|
92046
|
92046
92046-S021 BEARING-NEEDLE,STARTE |
92046-S021 |
US $25.67 |
||
|
92139
|
92139
92139-S024 BUSHING |
92139-S024 |
US $26.89 |
||
|
92153
|
92153
92153-S024 BOLT |
92153-S024 |
from US $1.43 |
||
| replacement | |||||
|
92153
|
92153
92153-S510 BOLT |
92153-S510 |
US $3.03 |
||
|
92180
|
92180
92180-S010 SHIM,STARTER IDLE GEA |
92180-S010 |
US $3.18 |
||
|
92200
|
92200
92200-S129 WASHER,LIMITER ASSY |
92200-S129 |
US $3.11 |
||
