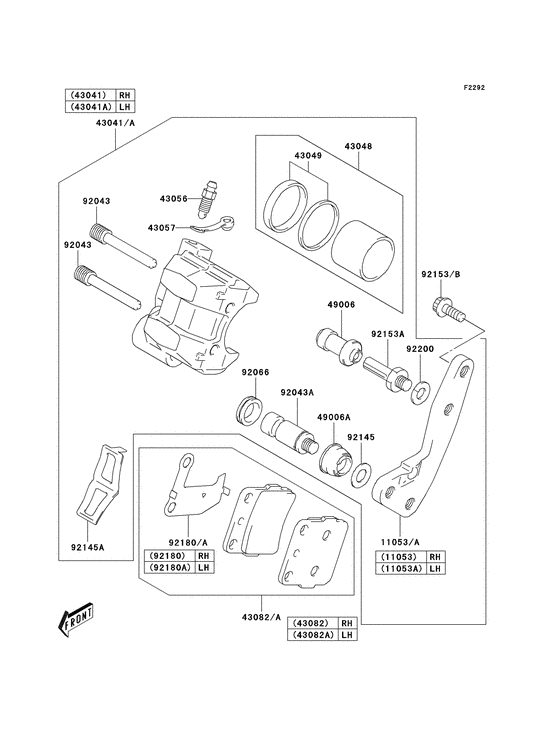

Front brake Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-S017 BRACKETBracket,rh; |
11053-S017 |
US $39.67 |
||
|
11053A
|
11053A
11053-S018 BRACKETBracket,lh; |
11053-S018 |
US $39.67 |
||
|
43041
|
43041
43041-S014 CALIPER-ASSY,FR,RHCaliper-assy,fr,rh; |
43041-S014 |
US $181.26 |
||
|
43041A
|
43041A
43041-S015 CALIPER-ASSY,FR,LHCaliper-assy,fr,lh; |
43041-S015 |
US $181.26 |
||
|
43048
|
43048
43048-S004 PISTON-CALIPER |
43048-S004 |
US $28.71 |
||
|
43049
|
43049
43049-S007 PACKING,PISTONPacking,piston; |
43049-S007 |
US $10.15 |
||
|
43056
|
43056
43056-S002 BREATHER-BRAKE |
43056-S002 |
from US $8.19 |
||
|
43057
|
43057
43057-S002 CAP-BREATHER,BLEEDER |
43057-S002 |
from US $5.27 |
||
|
43082
|
43082
43082-S013 PAD-ASSY-BRAKE,FR,LHPad-assy-brake,fr,rh; |
43082-S013 |
US $60.47 |
||
|
43082A
|
43082A
43082-S014 PAD-ASSY-BRAKE,FR,RHPad-assy-brake,fr,lh; |
43082-S014 |
US $60.47 |
||
|
49006
|
49006
49006-S007 BOOT |
49006-S007 |
from US $3.80 |
||
|
49006A
|
49006A
49006-S021 BOOT |
49006-S021 |
US $9.18 |
||
|
92043
|
92043
92043-S016 PIN |
92043-S016 |
from US $9.98 |
||
|
92043A
|
92043A
92043-S042 PIN |
92043-S042 |
US $15.41 |
||
|
92066
|
92066
92066-S035 PLUG,DUSTPlug,dust; |
92066-S035 |
US $8.19 |
||
|
92145
|
92145
92145-S105 SPRING |
92145-S105 |
US $4.30 |
||
|
92145A
|
92145A
92145-S106 SPRINGSpring,pad; |
92145-S106 |
US $8.98 |
||
|
92153A
|
92153A
92153-S297 BOLT |
92153-S297 |
US $10.54 |
||
|
92153B
|
92153B
92153-S470 BOLT |
92153-S470 |
US $2.75 |
||
|
92180
|
92180
92180-S043 SHIMShim,rh; |
92180-S043 |
US $7.29 |
||
|
92180A
|
92180A
92180-S044 SHIMShim,lh; |
92180-S044 |
US $8.60 |
||
|
92200
|
92200
92200-S159 WASHER |
92200-S159 |
US $1.58 |
