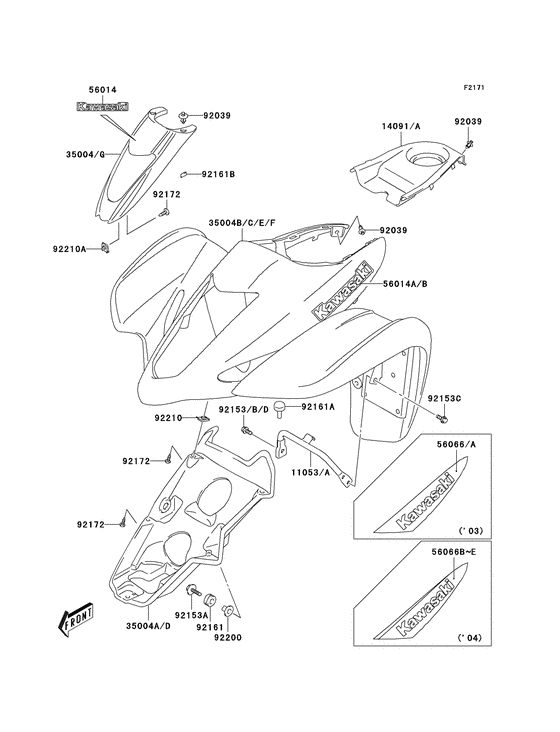

Front fender Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-S011 BRACKET,FRONT FENDERBracket,front fender,rh; |
11053-S011 |
US $32.99 |
||
|
11053A
|
11053A
11053-S012 BRACKET,FRONT FENDERBracket,front fender,lh; |
11053-S012 |
US $32.99 |
||
|
14091A
|
14091A
14091-S182-503 COVER,BLACKCover,black; |
14091-S182-503 |
US $42.93 |
||
|
35004D
|
35004D
35004-S020 FENDER-FRONT |
35004-S020 |
US $41.41 |
||
|
35004E
|
35004E
35004-S021-268 FENDER-FRONT,B.ORANGEFender-front,b.orange; |
35004-S021-268 |
US $294.62 |
||
|
35004F
|
35004F
35004-S021-908
FENDER-FRONT,L.GREEN
Fender-front,l.green; |
35004-S021-908 |
— | ||
|
35004G
|
35004G
35004-S022-503 FENDER-FRONT,COVER,BLFender-front,cover,black; |
35004-S022-503 |
US $52.67 |
||
|
56014
|
56014
56014-S024-559 EMBLEM,KAWASAKI,WHITEEmblem,kawasaki,white/black; |
56014-S024-559 |
US $11.52 |
||
|
56014A
|
56014A
56014-S030-576 EMBLEM,KAWASAKI,BLACKEmblem,kawasaki,black/orange; |
56014-S030-576 |
US $11.43 |
||
|
56014B
|
56014B
56014-S030-913 EMBLEM,KAWASAKI,,BLACEmblem,kawasaki,,black/green; |
56014-S030-913 |
US $13.55 |
||
|
92039
|
92039
92039-S010 RIVET |
92039-S010 |
US $3.94 |
||
|
92153A
|
92153A
92153-S067 BOLT |
92153-S067 |
from US $1.43 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S511 BOLT |
92153-S511 |
US $3.03 |
||
|
92153C
|
92153C
92153-S286 BOLT |
92153-S286 |
from US $1.43 |
||
| replacement | |||||
|
92153C
|
92153C
92153-S439 BOLT |
92153-S439 |
US $6.58 |
||
|
92153D
|
92153D
92153-S473 BOLT |
92153-S473 |
US $3.03 |
||
|
92161
|
92161
92161-S030 DAMPER |
92161-S030 |
from US $2.22 |
||
|
92161A
|
92161A
92161-S091 DAMPER,FRONT FENDER BDamper,front fender bracket; |
92161-S091 |
US $4.11 |
||
|
92161B
|
92161B
92161-S149 DAMPER |
92161-S149 |
US $2.50 |
||
| replacement | |||||
|
92161B
|
92161B
92161-S219 DAMPER |
92161-S219 |
US $5.13 |
||
|
92172
|
92172
92172-S031 SCREW |
92172-S031 |
from US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S310 SCREW |
92172-S310 |
from US $0.94 |
||
|
92200
|
92200
92200-S148 WASHER,FRONT FENDERWasher,front fender; |
92200-S148 |
US $9.66 |
||
|
92210
|
92210
92210-S012 NUT |
92210-S012 |
from US $1.11 |
||
| replacement | |||||
|
92210
|
92210
92210-S201 NUT |
92210-S201 |
from US $1.09 |
||
|
92210A
|
92210A
92210-S143 NUT |
92210-S143 |
US $3.86 |
||
