Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
11061	11061 11061-S094 GASKET	11061-S094	US $16.54
13168	13168 13168-S005 LEVER,CHOKE Lever,choke;	13168-S005	US $12.51
13280	13280 13280-S027 HOLDER	13280-S027	US $22.72
13280A	13280A 13280-S028 HOLDER	13280-S028	US $27.18
14091	14091 14091-S084 COVER,CHOKE Cover,choke;	14091-S084	US $9.93
14091A	14091A 14091-S090 COVER,CLUTCH LEVER Cover,clutch lever;	14091-S090	US $19.80
27010	27010 27010-S038 SWITCH,STOP Switch,stop;	27010-S038	from US $18.53
	replacements
27010	27010 27010-S053 SWITCH,STOP Switch,stop;	27010-S053	from US $20.53
27010	27010 27010-S059 Switch,Stop Switch,stop;	27010-S059	US $42.04
27010A	27010A 27010-S041 SWITCH	27010-S041	US $62.05
27017	27017 27017-S002 LOCK,PARKING Lock,parking;	27017-S002	US $59.47
32099	32099 32099-S010 CASE	32099-S010	US $41.04
46018A	46018A 46018-S005 GRIP-ASSY-THROTTLE	46018-S005	US $150.54
46075	46075 46075-S009 GRIP	46075-S009	US $12.89
	replacement
46075	46075 46075-S013 Grip	46075-S013	US $16
46076A	46076A 46076-S015 LEVER-ASSY-GRIP,CLUTC Lever-assy-grip,clutch;	46076-S015	US $135.94
	replacements
46076A	46076A 46076-S024 LEVER-ASSY-GRIP,CLUTC Lever-assy-grip,clutch;	46076-S024	from US $135.94
46076A	46076A 46076-S025 Lever-Assy-Grip,clutc Lever-assy-grip,clutch;	46076-S025	US $135.94
46091A	46091A 46091-S015 Superceded	46091-S015	US $137.52
	replacement
46091A	46091A 46091-S021 HOUSING-ASSY-CONTROL	46091-S021	US $193.09
46092	46092 46092-S010 LEVER-GRIP,FRONT BRAK Lever-grip,front brake;	46092-S010	US $33.95
46092A	46092A 46092-S011 LEVER-GRIP	46092-S011	US $21.04
	replacement
46092A	46092A 46092-S016 LEVER-GRIP	46092-S016	US $26.28
92026	92026 92026-S099 SPACER	92026-S099	US $9.95
92077	92077 92077-S006 KNOB,PARKING Knob,parking;	92077-S006	US $19.78
92145	92145 92145-S104 SPRING,RETURN Spring,return;	92145-S104	US $10.35
92153	92153 92153-S002 BOLT	92153-S002	from US $0.95
	replacement
92153	92153 92153-S559 BOLT	92153-S559	US $2.48
92153A	92153A 92153-S116 BOLT,BRAKE LEVER PIVO Bolt,brake lever pivot;	92153-S116	from US $2.53
92153B	92153B 92153-S294 BOLT	92153-S294	US $10.11
92153C	92153C 92153-S295 BOLT,PARKING LOCK Bolt,parking lock;	92153-S295	US $9.23
92153D	92153D 92153-S296 BOLT	92153-S296	US $14.81
92172	92172 92172-S053 SCREW	92172-S053	from US $1.75
92172A	92172A 92172-S133 SCREW	92172-S133	US $1.30
	replacement
92172A	92172A 92172-S357 SCREW	92172-S357	US $2.48
92172B	92172B 92172-S165 SCREW	92172-S165	US $3.18
92172C	92172C 92172-S176 SCREW	92172-S176	US $11.80
92172D	92172D 92172-S177 SCREW,ADJUSTER Screw,adjuster;	92172-S177	US $11.52
	replacement
92172D	92172D 92172-S386 Screw,Adjuster Screw,adjuster;	92172-S386	US $14.50
92172E	92172E 92172-S178 SCREW,PARKING PLATE Screw,parking plate;	92172-S178	US $8.46
92172F	92172F 92172-S182 SCREW	92172-S182	US $3.18
92200	92200 92200-S155 WASHER,PIVOT Washer,pivot;	92200-S155	US $6.68
92200A	92200A 92200-S157 WASHER,PARKING LOCK Washer,parking lock;	92200-S157	US $6.68
92200B	92200B 92200-S158 WASHER	92200-S158	US $6.68
92210	92210 92210-S024 NUT	92210-S024	US $1.27
	replacement
92210	92210 92210-S206 NUT	92210-S206	US $3.37
92210A	92210A 92210-S044 NUT,LEVER PIVOT Nut,lever pivot;	92210-S044	from US $2.22
92210B	92210B 92210-S065 NUT	92210-S065	US $1.21
	replacement
92210B	92210B 92210-S205 NUT	92210-S205	US $2.48
92210C	92210C 92210-S108 NUT,ADJUSTER Nut,adjuster;	92210-S108	US $28.75
	replacement
92210C	92210C 92210-S225 Nut,Adjuster Nut,adjuster;	92210-S225	US $42.11

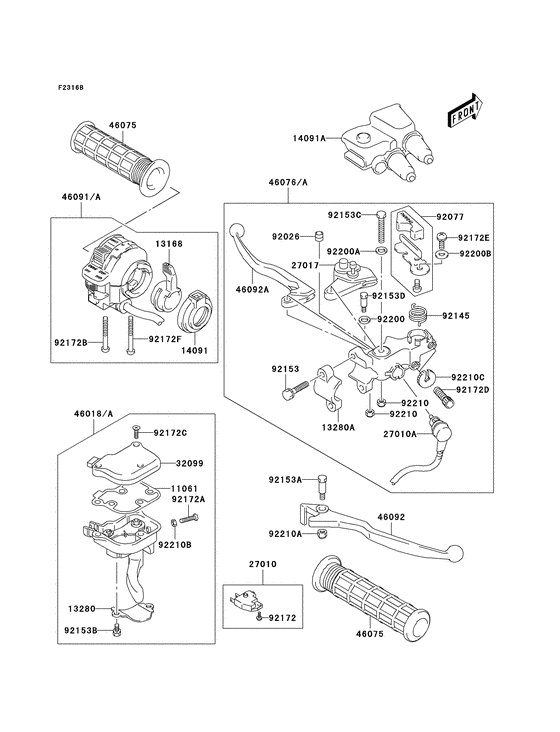

Handle lever (A2/a3) Diagram Kawasaki KSF400 KFX 400 USA 10397420-683583

Handle lever (A2/a3) Diagram Kawasaki KSF400 KFX 400 USA 10397420-683583
