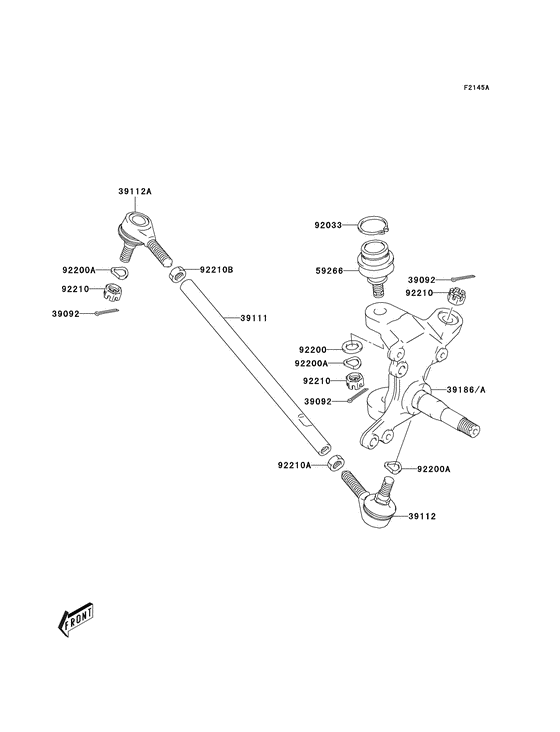

Knuckle arm (A3) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
39092
|
39092
39092-S005 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S005 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S014 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S014 |
US $2.48 |
||
|
39111
|
39111
39111-S004 ROD-TIE |
39111-S004 |
US $19.58 |
||
|
39112
|
39112
39112-S009 RODEND-TIE,RH |
39112-S009 |
US $79.46 |
||
|
39112A
|
39112A
39112-S010 RODEND-TIE,LH |
39112-S010 |
US $79.46 |
||
|
39186
|
39186
39186-S011 KNUCKLE,RHKnuckle,rh; |
39186-S011 |
US $229.32 |
||
|
39186A
|
39186A
39186-S012 KNUCKLE,LHKnuckle,lh; |
39186-S012 |
US $229.32 |
||
|
59266
|
59266
59266-S002 JOINT-BALL |
59266-S002 |
US $49.72 |
||
| replacement | |||||
|
59266
|
59266
59266-S003 JOINT-BALL |
59266-S003 |
US $49.72 |
||
|
92033
|
92033
92033-S038 Ring-snap |
92033-S038 |
US $2.14 |
||
| replacement | |||||
|
92033
|
92033
92033-S091 RING-SNAP |
92033-S091 |
from US $1.71 |
||
|
92200
|
92200
92200-S092 WASHERWasher,magneto; |
92200-S092 |
US $1.24 |
||
| replacement | |||||
|
92200
|
92200
92200-S290 WASHERWasher,magneto; |
92200-S290 |
US $2.48 |
||
|
92200A
|
92200A
92200-S096 WASHER,STEERING SHAFTWasher,steering shaft,lwr; |
92200-S096 |
US $5.36 |
||
|
92210
|
92210
92210-S052 NUT |
92210-S052 |
US $1.75 |
||
| replacement | |||||
|
92210
|
92210
92210-S212 NUT |
92210-S212 |
US $3.37 |
||
|
92210A
|
92210A
92210-S072 NUT,TIE-RODNut,tie-rod; |
92210-S072 |
US $2.19 |
||
|
92210B
|
92210B
92210-S073 NUTNut,tie-rod; |
92210-S073 |
US $1.55 |
||
| replacement | |||||
|
92210B
|
92210B
92210-S216 NUTNut,tie-rod; |
92210-S216 |
US $3.03 |
||
