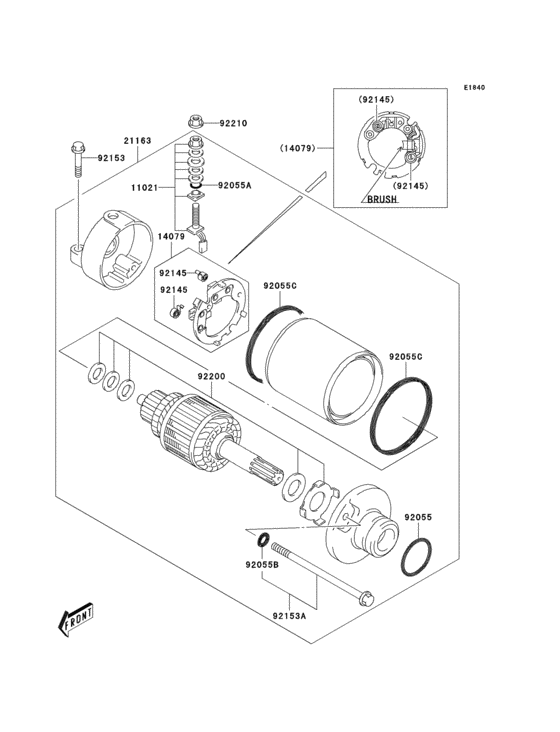

Starter motor Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- Canada
- Colour
- Colored Plastic Blazing Orange (268)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11021
|
11021
11021-S002 BRUSH,TERMINAL SET |
11021-S002 |
US $49.10 |
||
|
14079
|
14079
14079-S002 HOLDER-ASSY |
14079-S002 |
US $61.13 |
||
|
21163
|
21163
21163-S004 Starter-electric |
21163-S004 |
US $467.06 |
||
|
92055
|
92055
92055-S008 RING-O,D:3,ID:24.5 |
92055-S008 |
from US $2.38 |
||
|
92055A
|
92055A
92055-S067 RING-O |
92055-S067 |
US $4.46 |
||
|
92055B
|
92055B
92055-S068 RING-O |
92055-S068 |
US $4.18 |
||
|
92055C
|
92055C
92055-S069 RING-O |
92055-S069 |
US $9.79 |
||
|
92145
|
92145
92145-S103 SPRING,BRUSH |
92145-S103 |
US $4.57 |
||
|
92153
|
92153
92153-S003 BOLT |
92153-S003 |
from US $1.11 |
||
| replacement | |||||
|
92153
|
92153
92153-S579 BOLT |
92153-S579 |
from US $1.09 |
||
|
92153A
|
92153A
92153-S293 BOLT |
92153-S293 |
US $15.34 |
||
|
92200
|
92200
92200-S154 WASHER |
92200-S154 |
US $10.65 |
||
|
92210
|
92210
92210-S099 NUT,STARTING MOTOR |
92210-S099 |
US $1.39 |
||
