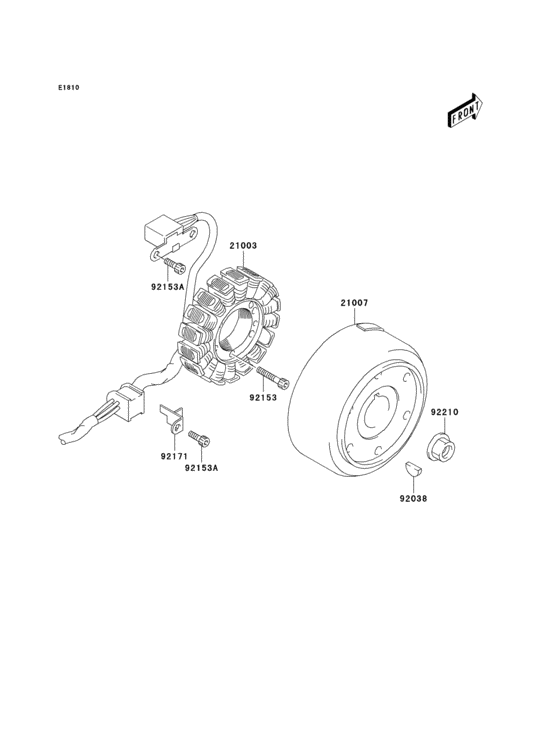

Generator Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21003
|
21003
21003-S006 STATOR,MAGNETO |
21003-S006 |
US $407.93 |
||
|
21007
|
21007
21007-S007 ROTOR,MAGNETO |
21007-S007 |
US $572.92 |
||
|
92038
|
92038
92038-S002 KEY |
92038-S002 |
from US $2.38 |
||
|
92153
|
92153
92153-S081 BOLT |
92153-S081 |
from US $1.11 |
||
| replacement | |||||
|
92153
|
92153
92153-S584 BOLT |
92153-S584 |
US $3.03 |
||
|
92153A
|
92153A
92153-S256 BOLT |
92153-S256 |
from US $1.11 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S560 BOLT |
92153-S560 |
US $3.03 |
||
|
92171
|
92171
92171-S099 CLAMP,MAGNETO LEAD |
92171-S099 |
US $3.35 |
||
|
92210
|
92210
92210-S107 NUT,MAGNETO ROTOR |
92210-S107 |
US $12.58 |
||
