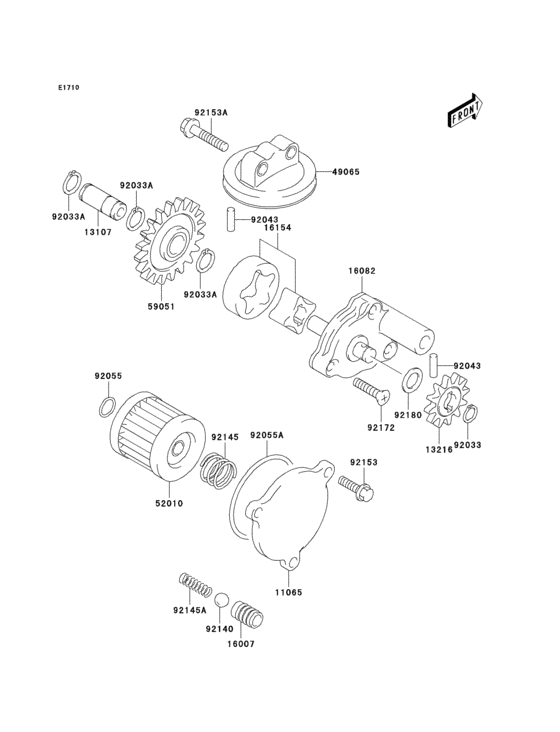

Oil pump Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400-A3
- Engine Capacity
- 398
- Year
- 2005
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S002 CAP,OIL FILTER |
11065-S002 |
from US $26.03 |
||
|
13107
|
13107
13107-S004 SHAFT,OIL PUMP IDLE G |
13107-S004 |
US $14.87 |
||
|
13216
|
13216
13216-S012 Gear-Comp,Oil Pump |
13216-S012 |
US $38.57 |
||
|
16007
|
16007
16007-S006 SEAT-SPRING |
16007-S006 |
US $39.73 |
||
|
16082
|
16082
16082-S004 Pump-assy-oil |
16082-S004 |
US $165.70 |
||
|
16154
|
16154
16154-S001 ROTOR-PUMP |
16154-S001 |
US $53.24 |
||
|
49065
|
49065
49065-S004 FILTER-OIL |
49065-S004 |
US $17.78 |
||
|
52010
|
52010
52010-S004 ELEMENT-OIL FILTER |
52010-S004 |
US $9.67 |
||
|
59051
|
59051
59051-S005 GEAR-SPUR,OIL PUMP |
59051-S005 |
US $28.63 |
||
|
92033
|
92033
92033-S001 Ring-snap |
92033-S001 |
from US $1.11 |
||
| replacement | |||||
|
92033
|
92033
92033-S086 RING-SNAP |
92033-S086 |
US $2.92 |
||
|
92033A
|
92033A
92033-S023 RING-SNAP |
92033-S023 |
US $1.55 |
||
| replacement | |||||
|
92033A
|
92033A
92033-S081 RING-SNAP |
92033-S081 |
US $3.03 |
||
|
92043
|
92043
92043-S007 PIN,4X15.8 |
92043-S007 |
from US $1.58 |
||
|
92055
|
92055
92055-S005 RING-O,ID:13 |
92055-S005 |
from US $2.38 |
||
|
92055A
|
92055A
92055-S010 RING-O,ID:52.6 |
92055-S010 |
from US $3.17 |
||
|
92140
|
92140
92140-S003 BALL,OIL CHECK VALVE |
92140-S003 |
US $3.04 |
||
|
92145
|
92145
92145-S004 SPRING |
92145-S004 |
from US $1.74 |
||
|
92145A
|
92145A
92145-S090 SPRING,OIL CHECK VALV |
92145-S090 |
US $6.78 |
||
|
92153
|
92153
92153-S001 BOLT |
92153-S001 |
from US $0.95 |
||
| replacement | |||||
|
92153
|
92153
92153-S563 BOLT |
92153-S563 |
US $2.48 |
||
|
92153A
|
92153A
92153-S067 BOLT |
92153-S067 |
from US $1.43 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S511 BOLT |
92153-S511 |
US $3.03 |
||
|
92172
|
92172
92172-S167 SCREW,OIL PUMP |
92172-S167 |
US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S331 SCREW,OIL PUMP |
92172-S331 |
US $24.80 |
||
|
92180
|
92180
92180-S001 SHIM,10X18X0.5 |
92180-S001 |
from US $2.38 |
||
