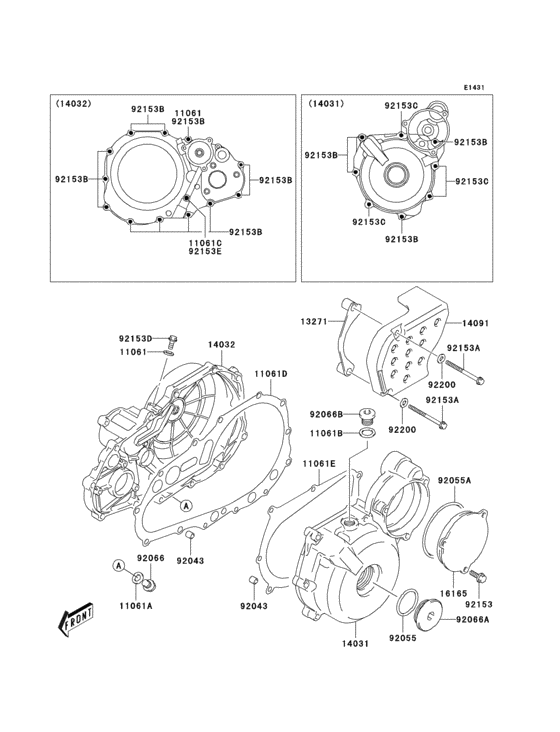

Engine cover(s) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400A6F
- Engine Capacity
- 398
- Year
- 2006
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S001 GASKET,5.8X13X1.2 |
11061-S001 |
from US $2.22 |
||
|
11061A
|
11061A
11061-S005 GASKET,12.1X16.2X3.7 |
11061-S005 |
from US $1.43 |
||
|
11061B
|
11061B
11061-S006 GASKET,13.8X18.8X0.4 |
11061-S006 |
from US $1.43 |
||
|
11061C
|
11061C
11061-S020 GASKET,8.2X14X1 |
11061-S020 |
from US $1.90 |
||
|
11061D
|
11061D
11061-S071 GASKET,CLUTCH COVER |
11061-S071 |
US $18.34 |
||
|
11061E
|
11061E
11061-S072 GASKET,MAGNETO COVER |
11061-S072 |
US $9.79 |
||
|
13271
|
13271
13271-S048 PLATE |
13271-S048 |
US $18.51 |
||
|
14031
|
14031
14031-S010 Cover-generator |
14031-S010 |
US $399.36 |
||
|
14032
|
14032
14032-S014 Superceded |
14032-S014 |
US $332.19 |
||
| replacements | |||||
|
14032
|
14032
14032-S017 COVER-CLUTCH |
14032-S017 |
US $315.66 |
||
|
14032
|
14032
14032-S015 COVER-CLUTCH |
14032-S015 |
US $256.09 |
||
|
14091
|
14091
14091-S080 COVER |
14091-S080 |
US $78.59 |
||
|
16165
|
16165
16165-S010 SEPARATOR,STARTER IDL |
16165-S010 |
US $42.16 |
||
|
92043
|
92043
92043-S001 PIN |
92043-S001 |
from US $1.58 |
||
|
92055
|
92055
92055-S056 RING-O,32.7X3.1 |
92055-S056 |
US $3.43 |
||
|
92055A
|
92055A
92055-S057 RING-O,69.6X2.6 |
92055-S057 |
US $27.23 |
||
|
92066
|
92066
92066-S001 PLUG |
92066-S001 |
from US $3.01 |
||
|
92066A
|
92066A
92066-S033-515 PLUG,W.SILVER |
92066-S033-515 |
US $15.64 |
||
|
92066B
|
92066B
92066-S052 PLUG |
92066-S052 |
from US $3.01 |
||
| replacement | |||||
|
92066B
|
92066B
92066-S003
PLUG
|
92066-S003 |
— | ||
|
92153
|
92153
92153-S001 BOLT |
92153-S001 |
from US $0.95 |
||
| replacement | |||||
|
92153
|
92153
92153-S563 BOLT |
92153-S563 |
US $2.48 |
||
|
92153A
|
92153A
92153-S007 BOLT |
92153-S007 |
from US $1.11 |
||
| replacement | |||||
|
92153A
|
92153A
92153-S557 BOLT |
92153-S557 |
US $3.03 |
||
|
92153B
|
92153B
92153-S062 BOLT |
92153-S062 |
from US $1.11 |
||
| replacement | |||||
|
92153B
|
92153B
92153-S554 BOLT |
92153-S554 |
US $3.03 |
||
|
92153C
|
92153C
92153-S128 BOLT |
92153-S128 |
US $1.55 |
||
| replacement | |||||
|
92153C
|
92153C
92153-S561 BOLT |
92153-S561 |
US $3.03 |
||
|
92153D
|
92153D
92153-S144 BOLT |
92153-S144 |
US $1.37 |
||
| replacement | |||||
|
92153D
|
92153D
92153-S578 BOLT |
92153-S578 |
US $2.48 |
||
|
92153E
|
92153E
92153-S466 BOLT,8X12 |
92153-S466 |
US $2.50 |
||
|
92200
|
92200
92200-S132 WASHER,SPROCKET COVER |
92200-S132 |
US $3.32 |
||
