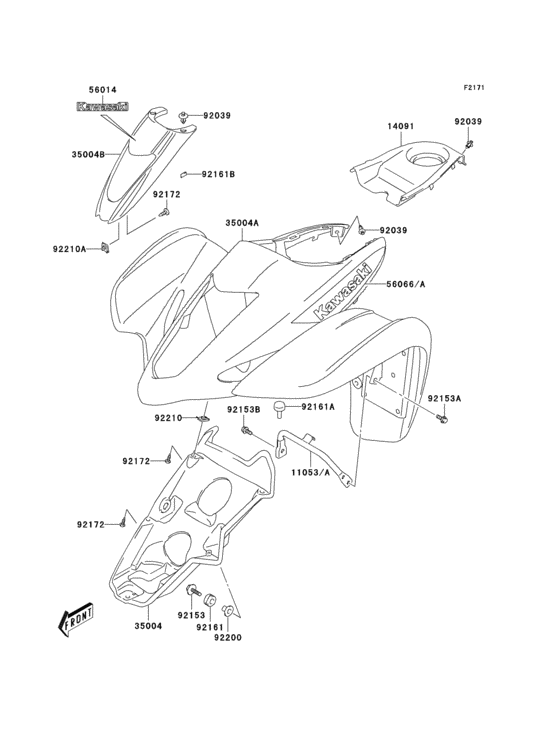

Front fender(s) Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400A6F
- Engine Capacity
- 398
- Year
- 2006
- Sales region
- Europe
- Colour
- Lime Green No.2 (908)
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-S011 BRACKET,FRONT FENDER |
11053-S011 |
US $32.99 |
||
|
11053A
|
11053A
11053-S012 BRACKET,FRONT FENDER |
11053-S012 |
US $32.99 |
||
|
14091
|
14091
14091-S182-503 COVER,BLACK |
14091-S182-503 |
US $42.93 |
||
|
35004
|
35004
35004-S020 FENDER-FRONT |
35004-S020 |
US $41.41 |
||
|
35004A
|
35004A
35004-S021-908
FENDER-FRONT,L.GREEN
|
35004-S021-908 |
— | ||
|
35004B
|
35004B
35004-S022-503 FENDER-FRONT,COVER,BL |
35004-S022-503 |
US $52.67 |
||
|
56014
|
56014
56014-S024-559 EMBLEM,KAWASAKI,WHITE |
56014-S024-559 |
US $11.52 |
||
|
56066
|
56066
56066-S007-920
PATTERN,FR FENDER,RH,
|
56066-S007-920 |
— | ||
|
56066A
|
56066A
56066-S009-920 PATTERN,FR FENDER,LH, |
56066-S009-920 |
US $28.62 |
||
|
92039
|
92039
92039-S010 RIVET |
92039-S010 |
US $3.94 |
||
|
92153
|
92153
92153-S067 BOLT |
92153-S067 |
from US $1.43 |
||
| replacement | |||||
|
92153
|
92153
92153-S511 BOLT |
92153-S511 |
US $3.03 |
||
|
92153A
|
92153A
92153-S439 BOLT |
92153-S439 |
US $6.58 |
||
|
92153B
|
92153B
92153-S473 BOLT |
92153-S473 |
US $3.03 |
||
|
92161
|
92161
92161-S030 DAMPER |
92161-S030 |
from US $2.22 |
||
|
92161A
|
92161A
92161-S091 DAMPER,FRONT FENDER B |
92161-S091 |
US $4.11 |
||
|
92161B
|
92161B
92161-S219 DAMPER |
92161-S219 |
US $5.13 |
||
|
92172
|
92172
92172-S031 SCREW |
92172-S031 |
from US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S310 SCREW |
92172-S310 |
from US $0.94 |
||
|
92200
|
92200
92200-S148 WASHER,FRONT FENDER |
92200-S148 |
US $9.66 |
||
|
92210
|
92210
92210-S012 NUT |
92210-S012 |
from US $1.11 |
||
| replacement | |||||
|
92210
|
92210
92210-S201 NUT |
92210-S201 |
from US $1.09 |
||
|
92210A
|
92210A
92210-S143 NUT |
92210-S143 |
US $3.86 |
||
