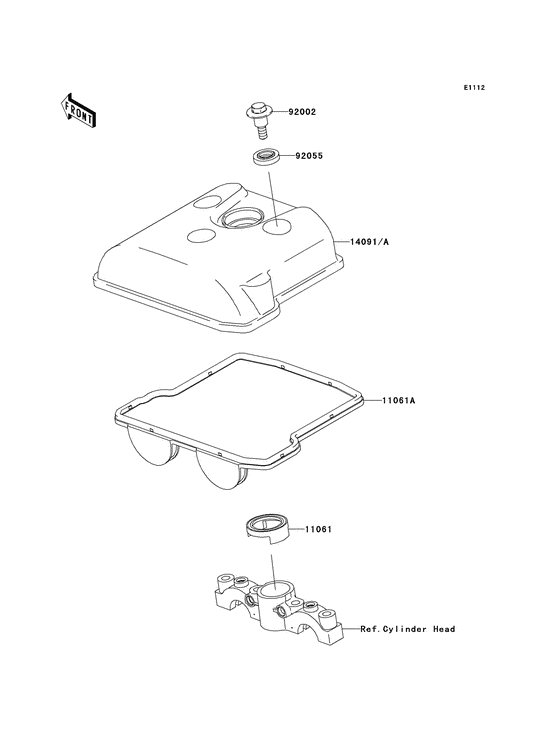

Cylinder head cover Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450B9FB
- Engine Capacity
- 449
- Year
- 2009
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-0079 GASKET,PLUG HOLEGasket,plug hole; |
11061-0079 |
from US $4.59 |
||
|
11061A
|
11061A
11061-0185 GASKET,CYLINDER HEADGasket,cylinder head cover; |
11061-0185 |
from US $18.37 |
||
|
14091A
|
14091A
14091-0807 Cover,cylinder headCover,cylinder head; |
14091-0807 |
from US $66.72 |
||
|
92002
|
92002
92002-1327 BOLT,L=20.5Bolt,flanged,6x22.5; |
92002-1327 |
from US $6.72 |
||
|
92055
|
92055
92055-1352 RING-O,HEAD COVER BOLTRing-o,head cover bolt; |
92055-1352 |
from US $7.98 |
