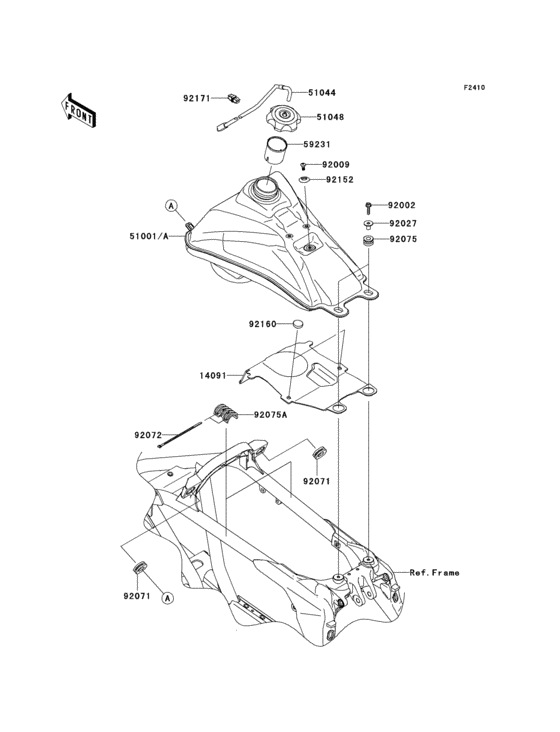

Fuel tank Diagram Kawasaki KSF450 KFX 450R
- Model code
- KSF450BBF
- Engine Capacity
- 449
- Year
- 2011
- Sales region
- Europe
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-0558 COVER,FUEL TANK,UNDER |
14091-0558 |
US $16.85 |
||
|
51001A
|
51001A
51001-0114 TANK-COMP-FUEL QAS-49 |
51001-0114 |
US $304.01 |
||
|
51044
|
51044
51044-0019 TUBE-ASSY,TANK CAP |
51044-0019 |
from US $13.94 |
||
|
51048
|
51048
51048-0009 CAP-ASSY-TANK,FUEL |
51048-0009 |
from US $34.11 |
||
|
59231
|
59231
59231-0029 FILLER,FUEL TANK |
59231-0029 |
US $6.43 |
||
|
92002
|
92002
130CA0625 BOLT-FLANGED,6X25 |
130CA0625 |
from US $1.61 |
||
|
92009
|
92009
92009-1971 SCREW,6MM |
92009-1971 |
from US $3.02 |
||
|
92027
|
92027
92027-1847 COLLAR,6=16.1 |
92027-1847 |
from US $3.64 |
||
|
92071
|
92071
92071-0040 GROMMET |
92071-0040 |
US $4.91 |
||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92075
|
92075
92075-1787 DAMPER |
92075-1787 |
from US $3.96 |
||
|
92075A
|
92075A
92075-1806 DAMPER,FUEL TANK |
92075-1806 |
from US $5.44 |
||
|
92152
|
92152
92152-1346 COLLAR |
92152-1346 |
from US $2.38 |
||
|
92160
|
92160
92160-1396 DAMPER,ENGINE GUARD |
92160-1396 |
from US $3.33 |
||
|
92171
|
92171
92171-0129 CLAMP,HIGHTENSION COR |
92171-0129 |
from US $2.17 |
