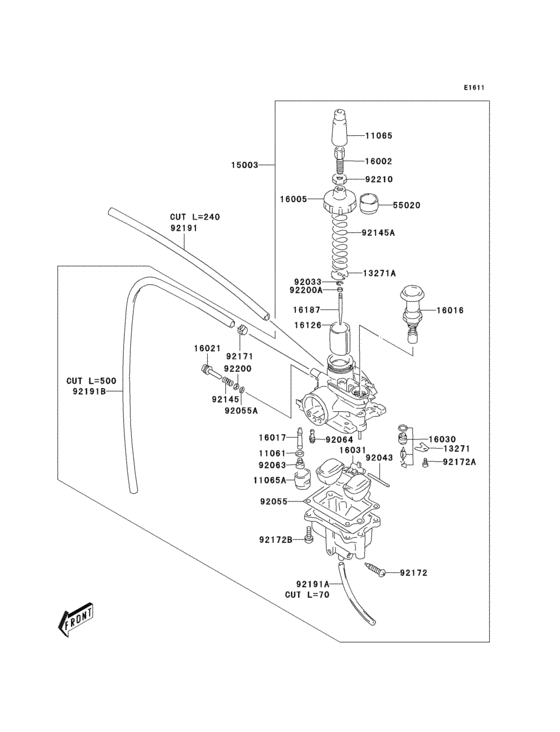

Carburetor Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80-A1
- Engine Capacity
- 79
- Year
- 2003
- Sales region
- Canada
- Colour
- Lime Green (535)
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11061
|
11061
11061-S057 GASKET |
11061-S057 |
US $4.23 |
||
|
11065
|
11065
11065-S024 CAP |
11065-S024 |
US $8.95 |
||
|
11065A
|
11065A
11065-S025 CAP |
11065-S025 |
US $10.22 |
||
|
13271
|
13271
13271-S037 PLATE |
13271-S037 |
US $4.77 |
||
|
13271A
|
13271A
13271-S038 PLATE |
13271-S038 |
US $1.78 |
||
|
15003
|
15003
15003-S005 CARBURETOR-ASSY |
15003-S005 |
US $277.68 |
||
|
16002
|
16002
16002-S001 ADJUSTER-CABLE |
16002-S001 |
US $4.57 |
||
|
16005
|
16005
16005-S010 TOP-CHAMBER |
16005-S010 |
US $26.14 |
||
|
16016
|
16016
16016-S005 PLUNGER |
16016-S005 |
US $42.77 |
||
|
16017
|
16017
16017-S004 JET-NEEDLE,(E-0) |
16017-S004 |
US $24.71 |
||
|
16021
|
16021
16021-S004 SCREW-THROTTLE STOP |
16021-S004 |
US $12.58 |
||
|
16030
|
16030
16030-S005 VALVE-FLOAT |
16030-S005 |
US $60.03 |
||
|
16031
|
16031
16031-S005 FLOAT |
16031-S005 |
US $27.63 |
||
|
16126
|
16126
16126-S007 VALVE,CA 2.5 |
16126-S007 |
US $48.02 |
||
|
16187
|
16187
16187-S006 NEEDLE-JET |
16187-S006 |
US $14.35 |
||
|
55020
|
55020
55020-S009 GUARD |
55020-S009 |
US $24.71 |
||
|
92033
|
92033
92033-S025 RING-SNAP,NEEDLE |
92033-S025 |
US $4 |
||
|
92043
|
92043
92043-S029 PIN |
92043-S029 |
US $3.35 |
||
|
92055
|
92055
92055-S043 RING-O |
92055-S043 |
US $7.91 |
||
|
92055A
|
92055A
92055-S044 RING-O |
92055-S044 |
US $7.21 |
||
|
92063
|
92063
92063-S004 JET-MAIN |
92063-S004 |
US $8.95 |
||
|
92064
|
92064
92064-S006 JET-PILOT |
92064-S006 |
US $9.77 |
||
|
92145
|
92145
92145-S072 SPRING |
92145-S072 |
US $4.14 |
||
|
92145A
|
92145A
92145-S073 SPRING,THROTTLE VALVE |
92145-S073 |
US $4.97 |
||
|
92171
|
92171
92171-S068 CLAMP |
92171-S068 |
US $14.50 |
||
|
92172
|
92172
92172-S046 SCREW,DRAIN |
92172-S046 |
from US $3.64 |
||
|
92172A
|
92172A
92172-S138 SCREW |
92172-S138 |
US $0.95 |
||
| replacement | |||||
|
92172A
|
92172A
92172-S382 SCREW |
92172-S382 |
from US $0.94 |
||
|
92172B
|
92172B
92172-S139 SCREW |
92172-S139 |
US $4.23 |
||
|
92191
|
92191
92191-S038 TUBE,VACUUM |
92191-S038 |
US $11.65 |
||
| replacement | |||||
|
92191
|
92191
92191-S098 Tube,Vacuum |
92191-S098 |
US $13.26 |
||
|
92191A
|
92191A
92191-S044 TUBE,3X5X600 |
92191-S044 |
US $3.22 |
||
| replacement | |||||
|
92191A
|
92191A
92191-S095 Tube,3X5X600 |
92191-S095 |
US $5.80 |
||
|
92191B
|
92191B
92191-S045 TUBE,3.5X6.5X600 |
92191-S045 |
US $7.21 |
||
|
92200
|
92200
92200-S106 WASHER |
92200-S106 |
US $3.35 |
||
|
92200A
|
92200A
92200-S107 WASHER |
92200-S107 |
US $5.95 |
||
|
92210
|
92210
92210-S079 NUT |
92210-S079 |
US $4.14 |
||
