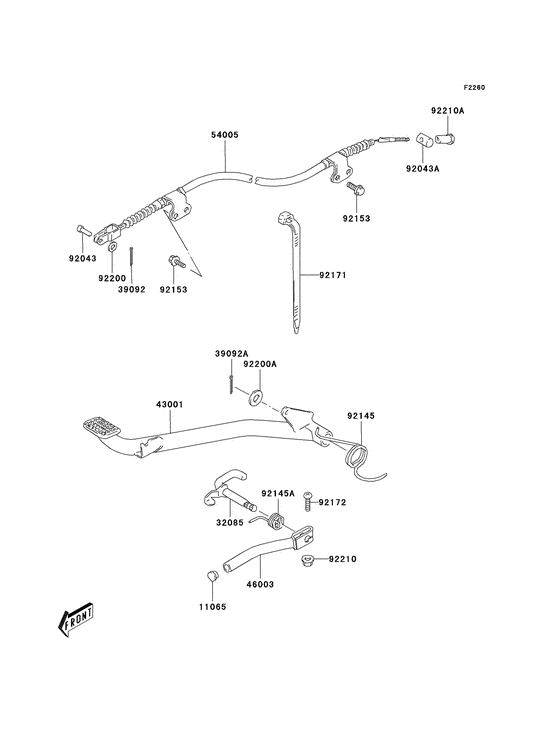

Brake pedal Diagram Kawasaki KSF80 KFX 80
- Model code
- KSF80A6F
- Engine Capacity
- 79
- Year
- 2006
- Sales region
- USA
- Power
- 4 hp
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-S027 CAP,STOPPER HANDLECap,stopper handle; |
11065-S027 |
US $2.02 |
||
|
32085
|
32085
32085-S007 STOPPER,BRAKE PEDALStopper,brake pedal; |
32085-S007 |
US $17.28 |
||
|
39092
|
39092
39092-S005 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S005 |
US $1.21 |
||
| replacement | |||||
|
39092
|
39092
39092-S014 PIN-HAIR,COTTERPin-hair,cotter; |
39092-S014 |
US $2.48 |
||
|
39092A
|
39092A
39092-S007 PIN-HAIR |
39092-S007 |
from US $0.95 |
||
| replacement | |||||
|
39092A
|
39092A
39092-S017 PIN-HAIR |
39092-S017 |
US $2.48 |
||
|
43001
|
43001
43001-S003 LEVER-BRAKE |
43001-S003 |
US $42.25 |
||
|
46003
|
46003
46003-S005 HANDLE,BRAKE PEDALHandle,brake pedal; |
46003-S005 |
US $13.57 |
||
|
54005
|
54005
54005-S008 CABLE-BRAKE,RRCable-brake,rr; |
54005-S008 |
US $54.03 |
||
|
92043
|
92043
92043-S031 PIN,REAR BRAKE CABLEPin,rear brake cable; |
92043-S031 |
US $1.67 |
||
|
92043A
|
92043A
92043-S032 PIN,REAR BRAKE CABLEPin,rear brake cable; |
92043-S032 |
US $4.77 |
||
|
92145
|
92145
92145-S078 SPRING,BRAKE PEDAL RESpring,brake pedal return; |
92145-S078 |
US $5.83 |
||
|
92145A
|
92145A
92145-S079 SPRING,BRAKE PEDAL STSpring,brake pedal stopper; |
92145-S079 |
US $3.47 |
||
|
92153
|
92153
92153-S012 BOLT |
92153-S012 |
from US $1.27 |
||
| replacement | |||||
|
92153
|
92153
92153-S502 BOLT |
92153-S502 |
from US $0.94 |
||
|
92171
|
92171
92171-S014 CLAMPClamp,l=125; |
92171-S014 |
from US $2.05 |
||
|
92172
|
92172
92172-S117 SCREW |
92172-S117 |
US $1.21 |
||
| replacement | |||||
|
92172
|
92172
92172-S319 SCREW |
92172-S319 |
US $2.48 |
||
|
92200
|
92200
92200-S003 WASHER |
92200-S003 |
from US $1.24 |
||
| replacement | |||||
|
92200
|
92200
92200-S286 WASHER |
92200-S286 |
from US $0.94 |
||
|
92200A
|
92200A
92200-S117 WASHER,BRAKE PEDALWasher,brake pedal; |
92200-S117 |
US $2.20 |
||
|
92210
|
92210
92210-S006 NUT |
92210-S006 |
from US $1.27 |
||
| replacement | |||||
|
92210
|
92210
92210-S192 NUT |
92210-S192 |
US $1.21 |
||
|
92210A
|
92210A
92210-S085 NUT,REAR BRAKE CABLENut,rear brake cable; |
92210-S085 |
US $2.93 |
||
